Removal [04/2013 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2 [04/2013 - 10/2017] , or refer to PROCEDURE - Step 2 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - ]

  2. REMOVE LUGGAGE COMPARTMENT KEY CYLINDER PROTECTOR

    Refer to PROCEDURE - Step 6 [04/2013 - 10/2017] , or refer to PROCEDURE - Step 6 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 6 [09/2020 - ]

  3. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

    Refer to PROCEDURE - Step 7 [04/2013 - 10/2017] , or refer to PROCEDURE - Step 7 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 7 [09/2020 - ]

  4. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

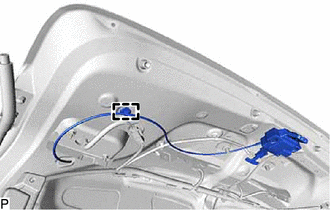

    1. Disengage the clamp.
      GTY459710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

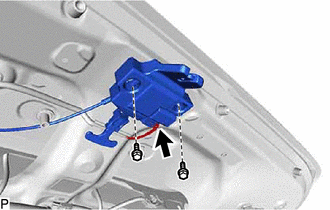

    2. Disconnect the connector.
      GTY459711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and luggage compartment door lock assembly.
