Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [04/2013 - 09/2020]

  2. REMOVE REAR TELEVISION CAMERA ASSEMBLY

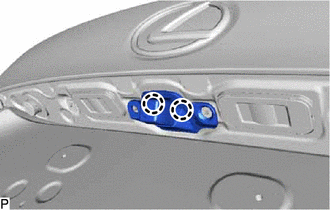

    1. Disengage the 2 claws.
      GTY465135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

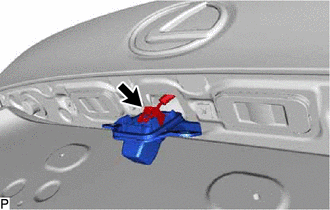

    2. Disconnect the connector to remove the rear television camera assembly.
      GTY465136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
