Removal [09/2015 - 08/2018]: Procedure
- OPEN BACK DOOR
- Open the back door before disconnecting the cable from the negative (-) battery terminal, as some procedures are performed with the back door open.NOTE:
The back door cannot be opened after the cable is disconnected from the negative (-) battery terminal.
- Open the back door before disconnecting the cable from the negative (-) battery terminal, as some procedures are performed with the back door open.

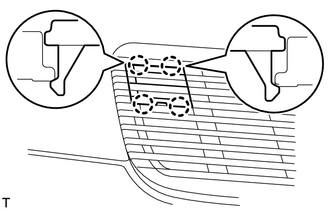

- REMOVE UPPER RADIATOR SUPPORT SEAL
Refer to PROCEDURE - Step 3
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work. Refer to PRECAUTION [09/2015 - ] .
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [09/2015 - 08/2019] .
- REMOVE REAR NO. 2 SEAT ASSEMBLY LH
Refer to REMOVAL [09/2015 - ] )
- REMOVE REAR NO. 2 SEAT ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.

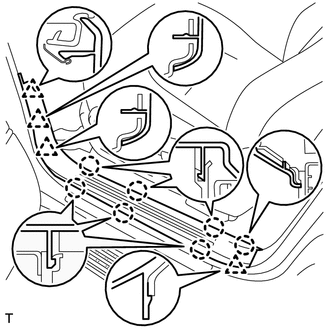

- REMOVE FRONT DOOR SCUFF PLATE LH
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.

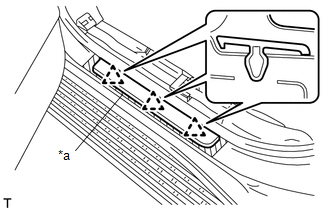

- REMOVE REAR STEP COVER
HINT:
Use the same procedure for both rear step covers.

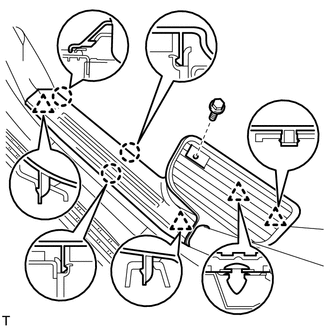

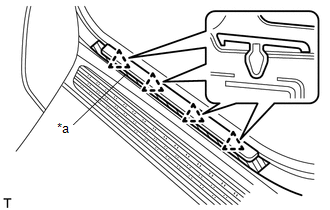

- REMOVE REAR DOOR SCUFF PLATE LH
- REMOVE REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR FLOOR MAT REAR SUPPORT PLATE

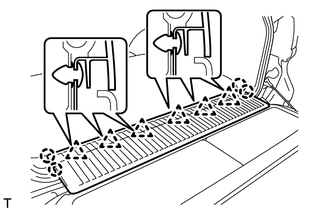

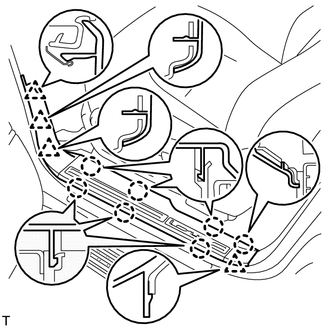

- Detach the 6 clips and 4 claws and remove the rear floor mat support plate.
- REMOVE ASSIST GRIP SUB-ASSEMBLY
See step 38
- REMOVE FRONT PILLAR GARNISH LH
See step 39
- REMOVE FRONT PILLAR GARNISH RH
See step 40
- REMOVE CENTER PILLAR GARNISH COVER LH
HINT:
- When removing the center pillar garnish cover LH, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
- After moving the front seat, disconnect the cable from the negative (-) battery terminal.
- REMOVE CENTER PILLAR GARNISH COVER RH
HINT:
Use the same procedures described for the LH side.
- REMOVE CENTER LOWER PILLAR GARNISH LH
HINT:
- When removing the center lower pillar garnish LH, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
- After moving the front seat, disconnect the cable from the negative (-) battery terminal.
- REMOVE CENTER LOWER PILLAR GARNISH RH
HINT:
- When removing the center lower pillar garnish RH, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
- After moving the front seat, disconnect the cable from the negative (-) battery terminal.
- REMOVE REAR ASSIST GRIP ASSEMBLY
HINT:
Use the same procedure for both rear assist grip assemblies.

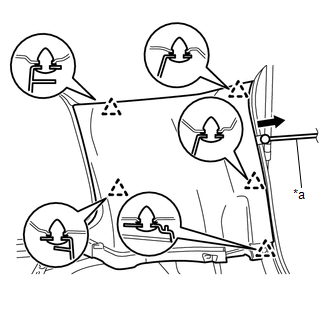

- REMOVE CENTER PILLAR GARNISH LH
- Remove the bolt.
- Detach the 2 clips and 2 guides.
- Pass the seat belt anchor through the center pillar garnish, and remove the center pillar garnish LH.
- REMOVE CENTER PILLAR GARNISH RH
HINT:
Use the same procedures described for the LH side.
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
HINT:
Use the same procedure for both No. 1 luggage compartment trim hooks.

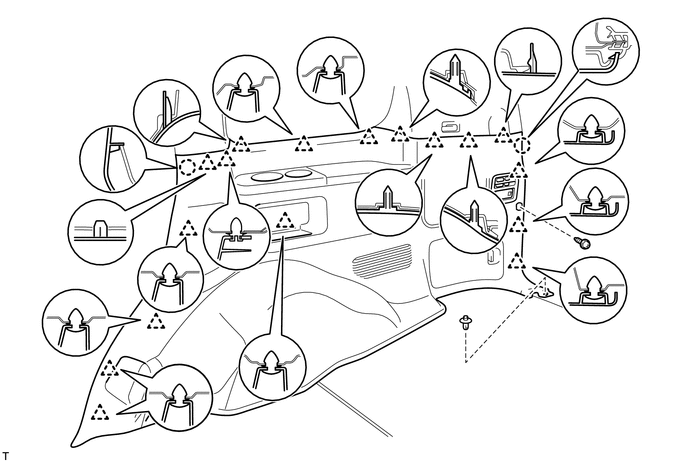

- REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH
HINT:
When removing the front quarter trim panel assembly LH, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.
Detach the 3 claws and remove the outer lap belt anchor cover.
Remove the bolt and rear No. 1 seat belt anchor.
Remove the bolt and rear No. 2 seat belt anchor.
- Remove the screw and clip.

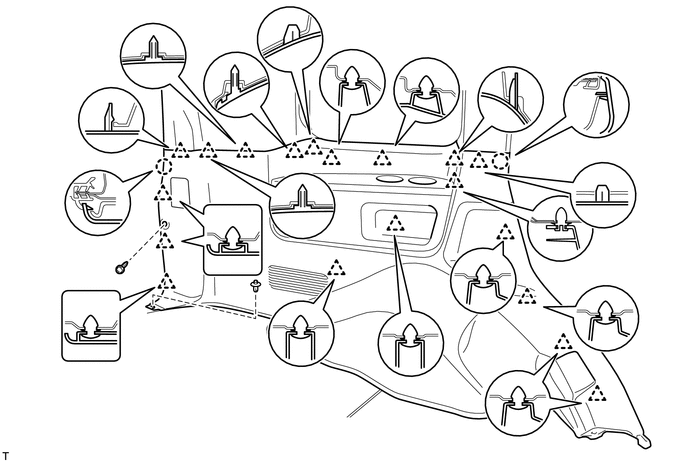

- Detach the 19 clips and 2 claws.
- Disconnect the thermistor connector and power outlet socket connector, and then remove the front quarter trim panel assembly LH.
- REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
HINT:
When removing the front quarter trim panel assembly RH, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.
Detach the 3 claws and remove the outer lap belt anchor cover.
Remove the bolt and rear No. 1 seat belt anchor.
Detach the 3 claws and remove the outer lap belt anchor cover.
Remove the bolt and rear No. 2 seat belt anchor.
- Remove the screw and clip.
- Detach the 17 clips and 2 claws.
- Disconnect the thermistor connector and then remove the front quarter trim panel assembly RH.
- REMOVE REAR FRONT QUARTER TRIM GARNISH LH
- Remove the screw.
- Detach the clip and 2 guides.
- Pass the seat belt anchor through the rear front quarter trim garnish LH, and remove the rear front quarter trim garnish LH.
- REMOVE REAR FRONT QUARTER TRIM GARNISH RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR UPPER PILLAR GARNISH LH
- REMOVE CENTER BACK DOOR GARNISH (w/ Power Back Door)
Refer to PROCEDURE - Step 4
- REMOVE BACK DOOR SIDE GARNISH RH (w/ Power Back Door)
Refer to PROCEDURE - Step 7
- DISCONNECT POWER BACK DOOR ROD (w/ Power Back Door)
Refer to PROCEDURE - Step 8
- REMOVE REAR UPPER PILLAR GARNISH RH
- REMOVE MAP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 ROOM LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE NO. 3 ROOM LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE VISOR BRACKET COVER
HINT:
Use the same procedure for both visor bracket covers.
- REMOVE VISOR ASSEMBLY LH
- Remove the 2 screws and visor assembly LH.
- REMOVE VISOR ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE VISOR HOLDER
HINT:
Use the same procedure for both visor holders.
- REMOVE CENTER VISOR ASSEMBLY LH
- REMOVE CENTER VISOR ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Pre-collision System)
Refer to PROCEDURE - Step 1
- REMOVE RAIN SENSOR COVER
Refer to PROCEDURE - Step 1
- REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)
Refer to PROCEDURE - Step 2
- REMOVE SEAT BELT ANCHOR COVER
- Detach the 4 clips and 4 guides, and remove the seat belt anchor cover.
- REMOVE ASSIST GRIP ASSEMBLY
HINT:
Use the same procedure for both assist grip assemblies.
- REMOVE NO. 2 ASSIST GRIP ASSEMBLY LH
- REMOVE NO. 2 ASSIST GRIP ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE 3RD SEAT ASSIST GRIP ASSEMBLY
HINT:
Use the same procedure for both 3rd seat assist grip assemblies.
- REMOVE ROOF HEADLINING ASSEMBLY
HINT:
- When removing the roof headlining assembly, connect the cable to the negative (-) battery terminal and move the front seat and No. 1 rear seat to the position shown in the illustration.
- After moving the seats, disconnect the cable from the negative (-) battery terminal.
w/o Pre-collision System:
Disconnect the connector.
Disconnect the connector.
- w/ Pre-collision System:
Disconnect the connector.
Disconnect the 3 roof wire connectors and washer hose.
- Detach the 4 clamps.TEXT IN ILLUSTRATION
* a Front Left Side * b Washer Hose Remove the bolt.
- Disconnect the antenna cord connector and detach the 2 clamps.TEXT IN ILLUSTRATION
* a Front Right Side Disconnect the antenna cord connector.
TEXT IN ILLUSTRATION* a Rear Right Side Disconnect the washer hose.

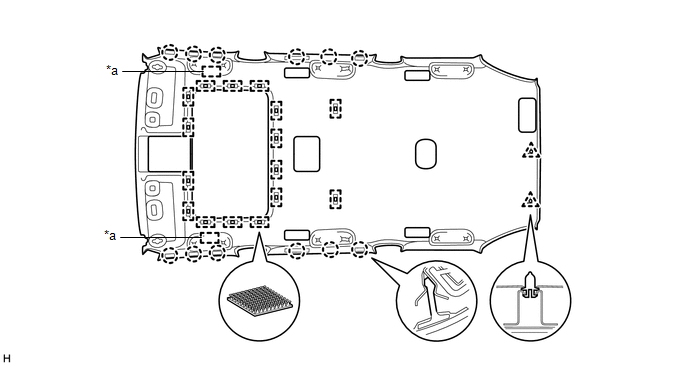

TEXT IN ILLUSTRATION* a Rear Left Side - Detach the 12 claws, 2 clips, 2 guides and 16 fasteners.TEXT IN ILLUSTRATION
* a Guide - - Remove the roof headlining assembly from the rear of the vehicle as shown in the illustration.
NOTE:Be careful not to damage the roof headlining assembly when taking it out.
- REMOVE FRONT ROOF SIDE RAIL GARNISH LH
- REMOVE FRONT ROOF SIDE RAIL GARNISH RH
HINT:
Use the same procedures described for the LH side.
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
- Remove the front door opening trim weatherstrip LH.
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
- Remove the rear door opening trim weatherstrip LH.
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedures described for the LH side.
- REMOVE BACK DOOR WEATHERSTRIP
- Remove the back door weatherstrip.
- REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR DOOR SCUFF PLATE OUTSIDE LH
- REMOVE REAR DOOR SCUFF PLATE OUTSIDE RH
HINT:
Use the same procedures described for the LH side.
- REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
- Detach the 6 claws of the front shoulder belt anchor plate sub-assembly LH, and slide the front shoulder belt anchor plate sub-assembly LH in the direction of the arrow to remove it.
- REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
- Detach the 6 claws and remove the rear shoulder belt anchor plate sub-assembly LH.
- REMOVE REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE ROOF SIDE INNER GARNISH COVER LH
- Detach the 7 claws and remove the roof side inner garnish cover LH.
- REMOVE ROOF SIDE INNER GARNISH COVER RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR NO. 1 SEAT SHOULDER BELT HANGER
HINT:
Use the same procedure for both rear No. 1 seat shoulder belt hangers.
- REMOVE REAR NO. 2 SEAT SHOULDER BELT HANGER LH
- REMOVE REAR NO. 2 SEAT SHOULDER BELT HANGER RH
HINT:
Use the same procedures described for the LH side.
- REMOVE QUARTER TRIM COVER SUB-ASSEMBLY LH
- REMOVE QUARTER TRIM COVER SUB-ASSEMBLY RH
- Remove the 7 screws.
- Detach the 4 claws and remove the quarter trim cover sub-assembly RH.
- REMOVE NO. 2 CUP HOLDER
- Remove the 5 screws.
- Detach the 3 claws and remove the No. 2 cup holder.
- REMOVE NO. 1 CUP HOLDER
- Remove the 5 screws.
- Detach the 3 claws and remove the No. 1 cup holder.
- REMOVE NO. 1 SIDE TRIM BASE COVER LH
- Detach the 4 claws and remove the No. 1 side trim base cover LH.
- REMOVE NO. 1 SIDE TRIM BASE COVER RH
- REMOVE NO. 2 SIDE TRIM BASE COVER LH
- Detach the 4 claws and remove the No. 2 side trim base cover LH.
- REMOVE NO. 2 SIDE TRIM BASE COVER RH
HINT:
Use the same procedures described for the LH side.

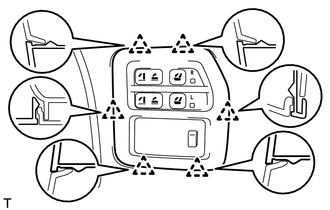

- REMOVE FOLD SEAT SWITCH ASSEMBLY
- Detach the 6 clips and remove the fold seat switch assembly.
- REMOVE QUARTER TRIM COVER LH
- Detach the 6 clips and remove the quarter trim cover LH.
- REMOVE QUARTER TRIM LID SUB-ASSEMBLY RH
- Remove the quarter trim lid sub-assembly RH.
- REMOVE SIDE TRIM BOX COVER (w/o Woofer)
- Remove the side trim box cover.
- REMOVE SIDE TRIM BOX (w/o Woofer)

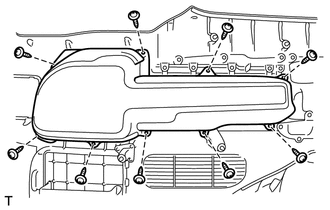

- Remove the 9 screws and side trim box.
