Removal [09/2015 - ]: Procedure

  1. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
    1. Remove the 3 bolts and 2 screws.
      GTY642579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the clip indicated by the arrow in the illustration to remove the front fender splash shield sub-assembly LH.
  2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  3. REMOVE UPPER RADIATOR SUPPORT SEAL
    1. Remove the 11 clips and upper radiator support seal.

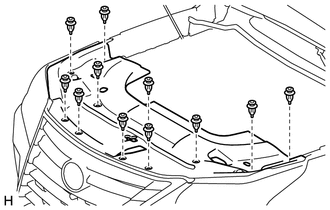

      GTY642590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT BUMPER COVER
    1. Using a T30 "TORX" socket, remove the 3 screws.

      HINT:

      Use the same procedure for the other side.

      GTY642578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws and 4 bolts.

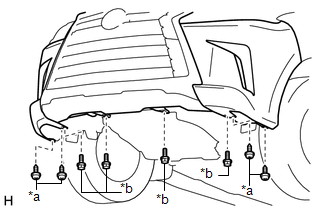

      GTY674663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Screws
      *b Bolt
    3. Remove the 3 screws.

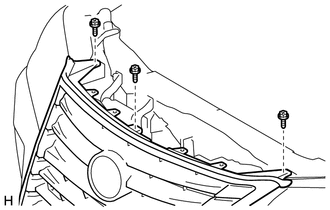

      GTY642561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Dynamic Radar Cruise Control System:

      Disconnect the connector

    5. Disconnect the front television camera assembly connector.
    6. Disconnect the No. 4 engine room wire connector.
    7. Put protective tape around the front bumper cover.

      HINT:

      Use the same procedure for the other side.

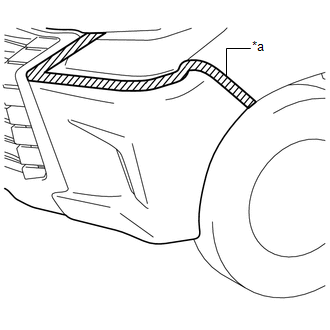

      GTY616837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape
    8. Detach the 5 claws.

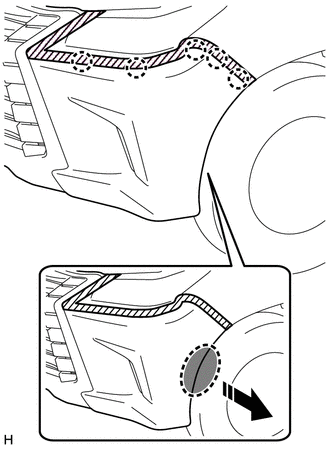

      GTY642577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other side.

    9. Detach the 4 claws and remove the front bumper cover.

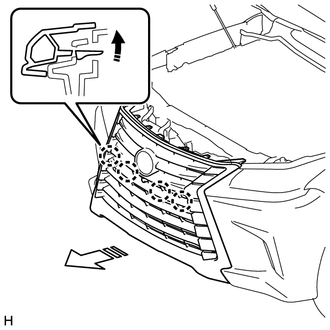

      GTY617529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. w/ Headlight Cleaner System:

      Disconnect the headlight cleaner hose.

  5. REMOVE FRONT BUMPER ENERGY ABSORBER
    1. Remove the front bumper energy absorber.

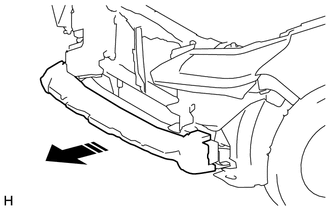

      GTY642576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the 6 nuts and front bumper reinforcement sub-assembly.

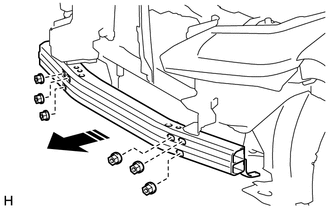

      GTY642575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT BUMPER NO. 2 EXTENSION SUB-ASSEMBLY LH
    1. Remove the 4 nuts and front bumper No. 2 extension sub-assembly LH.
      GTY679129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT BUMPER NO. 2 EXTENSION SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  9. REMOVE FRONT BUMPER SIDE SUPPORT LH
    1. Remove the bolt.

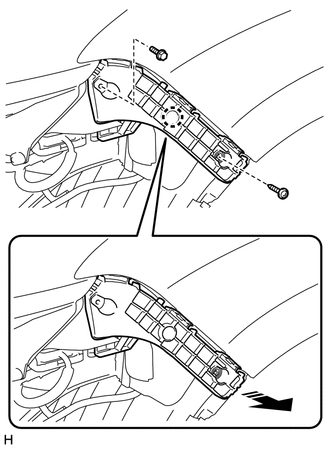

      GTY642570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw.
    3. Detach the claw and remove the front bumper side support LH.
  10. REMOVE FRONT BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure described for the LH side.

  11. REMOVE FRONT FENDER MAIN SEAL LH

    Refer to PROCEDURE - Step 4

  12. REMOVE FRONT FENDER MAIN SEAL RH

    HINT:

    Use the same procedure described for the LH side.

  13. REMOVE HEADLIGHT ASSEMBLY LH

    (Refer to REMOVAL [09/2015 - ] )

  14. REMOVE HEADLIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  15. REMOVE FRONT BUMPER UPPER CENTER RETAINER
    1. Remove the 4 bolts.

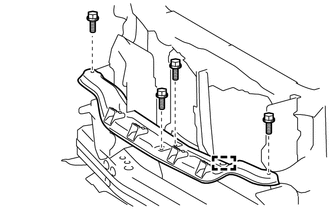

      GTY617531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guide and remove the front bumper upper center retainer.
  16. REMOVE FRONT BUMPER LOWER NO. 2 RETAINER
    1. Detach the 2 claws and remove the front bumper lower No. 2 retainer.
      GTY617534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for all front bumper lower No. 2 retainers.
