Installation [10/2020 - ]: Procedure

INSTALL CLOCK ASSEMBLY

NOTE:

When installing the clock assembly, make sure that no dust, etc., enters the inside of the multi-display.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

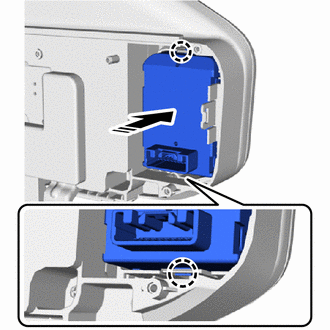

Install in this Direction

Attach the claw to install the clock assembly as shown in the illustration.

INSTALL MULTI-MEDIA MODULE COVER
Refer to PROCEDURE - Step 3 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]
INSTALL MULTI-DISPLAY
Refer to INSTALLATION [10/2020 - 10/2022] , or refer to INSTALLATION [10/2022 - ]
