Reassembly [10/2022 - ]: Procedure

  1. INSTALL MULTI-DISPLAY
  2. INSTALL CLOCK ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL MULTI-MEDIA MODULE COVER

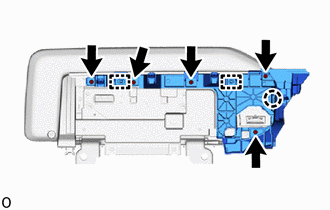

    1. Attach the guide and claw to temporarily install the multi-media module cover.
      GTY1136114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the multi-media module cover with the 5 screws.
