Reassembly [10/2020 - 10/2022]: Procedure

  1. INSTALL MULTI-DISPLAY
  2. INSTALL CLOCK ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL MULTI-MEDIA MODULE COVER

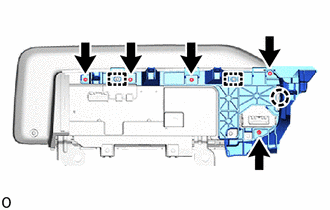

    1. Attach the guide and claw to temporarily install the multi-media module cover.
      GTY971529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the multi-media module cover with the 5 screws.
