Removal [10/2022 - 10/2023]: Procedure

Refer to PROCEDURE - Step 25

Refer to PROCEDURE - Step 4

WARNING:

• Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
• If the airbag deploys for any reason, it may cause a serious accident.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 2

1. Detach the claw and remove the rear corner ultrasonic sensor.
   NOTE:

   Before removing the sensor, make sure to mark the sensor and rear bumper assembly so that each sensor can be returned to its original position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the rear corner ultrasonic sensor retainer, heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.

1. Heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.
   WARNING:

   • Do not touch the heat light and heated parts.
   • Touching the heat light may result in burns.
   • Touching heated parts for a long time may result in burns.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Heated Part
   *b	Heat Light

   Standard

   Item	Temperature
   Rear Bumper Assembly	20 to 30°C (68 to 86°F)
   Rear Corner Ultrasonic Sensor Retainer

2. Remove the rear corner ultrasonic sensor retainer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Detach the claw and remove ultrasonic sensor clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Detach the claw and remove the rear center ultrasonic sensor.
   NOTE:

   Before removing the sensor, make sure to mark the sensor and rear bumper assembly so that each sensor can be returned to its original position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the rear center ultrasonic sensor retainer, heat the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light.

1. Heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.
   WARNING:

   • Do not touch the heat light and heated parts.
   • Touching the heat light may result in burns.
   • Touching heated parts for a long time may result in burns.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Heated Part
   *b	Heat Light

   Standard

   Item	Temperature
   Rear Bumper Assembly	20 to 30°C (68 to 86°F)

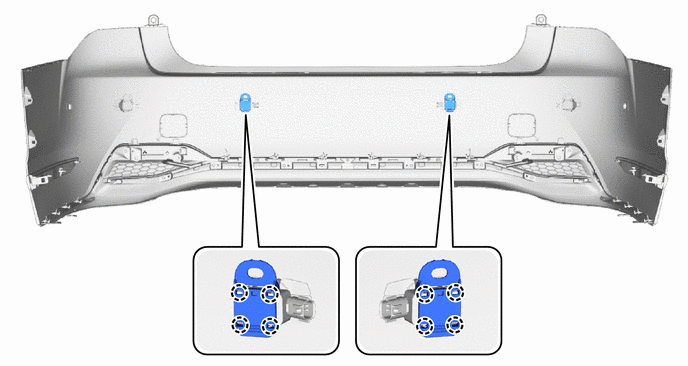

   Rear Center Ultrasonic Sensor Retainer

2. Remove the rear center ultrasonic sensor retainer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Use the same procedure for the other rear ultrasonic sensor clip.
• When removing the rear ultrasonic sensor clip, heat the rear bumper assembly and rear ultrasonic sensor clip using a heat light.

1. Heat the rear bumper assembly and rear ultrasonic sensor clip using a heat light.
   WARNING:

   • Do not touch the heat light and heated parts.
   • Touching the heat light may result in burns.
   • Touching heated parts for a long time may result in burns.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Heated Part
   *b	Heat Light

   Standard

   Item	Temperature
   Rear Bumper Assembly	20 to 30°C (68 to 86°F)
   Rear Ultrasonic Sensor Clip

2. Remove the rear ultrasonic sensor clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

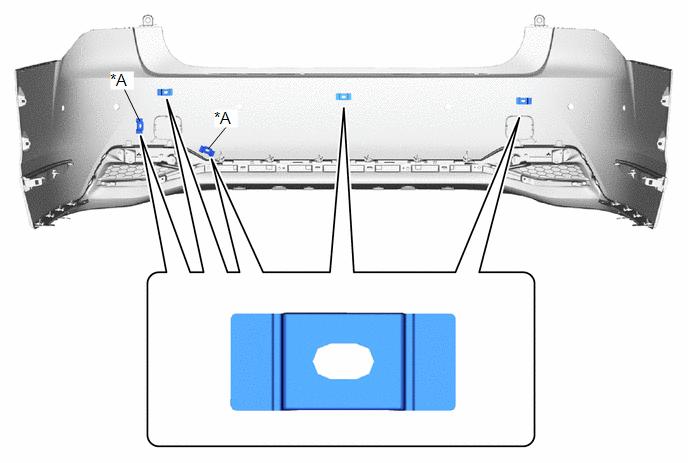

   *A

   w/ Hands free power trunk lid

   -

   -

HINT:

Only perform this procedure when removing and installing the ultrasonic sensor cushion set.

1. Remove the ultrasonic sensor cushion set as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -
