Disassembly [12/2017 - 10/2023]: Procedure

  1. REMOVE KICK DOOR CONTROL BRACKET (w/ Hands Free Power Trunk Lid)

    Refer to PROCEDURE - Step 5 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 5 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 5 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 10/2023]

  2. REMOVE NO. 3 LUGGAGE ROOM WIRE (w/ Parking Support Brake System)
    1. Disconnect the 4 connectors.
      NOTE:

      Do not apply excessive loads to the retainer. Otherwise, it may peel off.

    2. Detach the clamp and remove the No. 3 luggage room wire.
      GTY834790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Hands Free Power Trunk Lid - -
  3. REMOVE REAR CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 6 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 6 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 6 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 10/2023]

  4. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 7 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 7 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 7 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 10/2023]

  5. REMOVE ULTRASONIC SENSOR CLIP (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 8 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 8 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 8 [10/2022 - 10/2023]

  6. REMOVE REAR CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 9 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 9 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 9 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 10/2023]

  7. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 10 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 10 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 10 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - 10/2023]

  8. REMOVE REAR ULTRASONIC SENSOR CLIP (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 11 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 11 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 11 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 10/2023]

  9. REMOVE REAR BUMPER EXTENSION SUB-ASSEMBLY LH
    1. Remove the 2 clips.
      GTY810272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Grommet
    2. Remove the 2 screw and 2 grommets.
    3. Detach the guide and remove the rear bumper extension sub-assembly LH.
  10. REMOVE REAR BUMPER EXTENSION SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  11. REMOVE REAR BUMPER SIDE MOULDING LH
    1. Remove the 2 clips.
      GTY810418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the claw and remove the rear bumper side moulding LH as shown in the illustration.
  12. REMOVE REAR BUMPER SIDE MOULDING RH

    HINT:

    Use the same procedure described for the LH side.

  13. REMOVE REAR BUMPER LOWER COVER
    1. Remove the 4 clips.
      GTY796930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

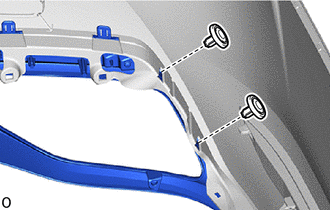

    2. Remove the 2 clips.
      GTY832037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    3. Remove the 6 clips.
      GTY796934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the claw.
      GTY796939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    5. Remove the rear bumper lower cover as shown in the illustration.
      GTY821481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Bumper Cover
      Remove in this Direction
  14. REMOVE REFLEX REFLECTOR ASSEMBLY LH
    1. Remove the screw.
      GTY817407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the guide and claw and remove the reflex reflector assembly LH as shown in the illustration.
  15. REMOVE REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  16. REMOVE REAR BUMPER PIECE LH
    1. Detach the claw.
      GTY825119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the anti-drop hook and remove the rear bumper piece LH as shown in the illustration.
  17. REMOVE REAR BUMPER PIECE RH

    HINT:

    Use the same procedure described for the LH side.

  18. REMOVE NO. 1 MOULDING TAPE

    HINT:

    When removing the No. 1 moulding tape, heat the rear bumper cover and No. 1 moulding tape using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    No. 1 Moulding Tape 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Using a heat light, heat the rear bumper cover and No. 1 moulding tape.
    2. GTY795577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the No. 1 moulding tape.

      HINT:

      Use the same procedure for the RH and LH side.

  19. REMOVE REAR BUMPER ARM

    HINT:

    When removing the rear bumper arm, heat the rear bumper cover and rear bumper arm using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    Rear Bumper Arm 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Using a heat light, heat the rear bumper cover and rear bumper arm.
    2. GTY779137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 rear bumper arms.

      HINT:

      Use the same procedure for the RH and LH side.

  20. REMOVE REAR BUMPER ENERGY ABSORBER
    1. Detach the guide and remove the rear bumper energy absorber.
      GTY820719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  21. REMOVE REAR BUMPER ARM REINFORCEMENT LH
    1. Remove the bolt.
      GTY779428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    2. Using a screwdriver, detach the claw and remove the rear bumper arm reinforcement LH.
  22. REMOVE REAR BUMPER ARM REINFORCEMENT RH

    HINT:

    Use the same procedure described for the LH side.

  23. REMOVE REAR BUMPER BAR CORNER REINFORCEMENT LH
    1. Remove the 5 bolts.
      GTY1135119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guide and remove the rear bumper bar corner reinforcement LH.
  24. REMOVE REAR BUMPER BAR CORNER REINFORCEMENT RH

    HINT:

    Use the same procedure described for the LH side.

  25. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the 8 bolts.
      GTY1134498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guide and remove the rear bumper reinforcement sub-assembly.
      GTY1136387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  26. REMOVE REAR BUMPER LOWER RETAINER LH
    1. Remove the 4 screws and rear bumper lower retainer LH.
      GTY779147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR BUMPER LOWER RETAINER RH

    HINT:

    Use the same procedure described for the LH side.

  28. REMOVE REAR BUMPER LOWER SIDE RETAINER LH
    1. Using a screwdriver, turn the clip 90° and detach the clip as shown in the illustration.
      GTY836178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90°
      Rotation Direction
      Remove in this Direction
    2. Detach the claw and remove the rear bumper lower side retainer LH as shown in the illustration.
  29. REMOVE REAR BUMPER LOWER SIDE RETAINER RH

    HINT:

    Use the same procedure described for the LH side.

  30. REMOVE REAR BUMPER SIDE SUPPORT LH
    1. GTY794587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90°
      Rotation Direction
      Remove in this Direction

      Using a screwdriver, turn the clip 90° and detach the clip as shown in the illustration.

    2. Detach the claw and remove the rear bumper side support LH as shown in the illustration.
  31. REMOVE REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure described for the LH side.
