Removal [01/2017 - 05/2023]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [01/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [01/2017 - 05/2023]

  2. REMOVE NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 11 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023]

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [01/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

  4. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side.

    Refer to PROCEDURE - Step 10 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 10 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 10 [04/2020 - 05/2023]

  5. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure for the RH side and LH side.

    Refer to PROCEDURE - Step 12 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 12 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 12 [04/2020 - 05/2023]

  6. REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER RH

    Refer to PROCEDURE - Step 15 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 15 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 15 [04/2020 - 05/2023]

  7. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 28 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 28 [04/2020 - 05/2023]

  8. REMOVE NO. 1 GLOVE COMPARTMENT PANEL

    Refer to PROCEDURE - Step 17 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 17 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 17 [04/2020 - 05/2023]

  9. REMOVE NO. 2 GLOVE COMPARTMENT PANEL

    Refer to PROCEDURE - Step 29 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 29 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 29 [04/2020 - 05/2023]

  10. REMOVE REAR CONSOLE BOX POCKET

    Refer to PROCEDURE - Step 1

  11. REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  12. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  13. REMOVE SHIFTING HOLE COVER ASSEMBLY

    Refer to PROCEDURE - Step 4

  14. REMOVE UPPER CONSOLE BOX

    Refer to PROCEDURE - Step 7

  15. REMOVE BOX PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  16. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  17. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
    WARNING:
    GTY819831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Deployment Side
    • When storing the lower No. 2 instrument panel airbag assembly, keep the airbag deployment side facing upward.
    • If the airbag deploys for any reason, it may cause a serious accident.
    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:
      • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
      • If the airbag deploys for any reason, it may cause a serious accident.
      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. GTY787122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 bolts.

    4. GTY781593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Place Hands Here

      Place your hand at the position shown in the illustration and pull toward the rear of the vehicle to detach the claw and pull out the No. 2 lower instrument panel airbag assembly.

    5. Tilt the lower No. 2 instrument panel airbag assembly toward the seat and support it with one hand.

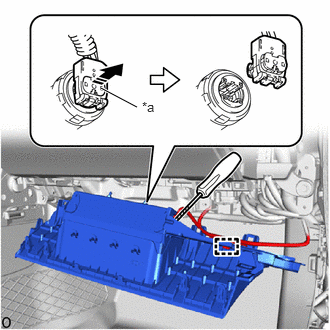

      GTY788892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Button
      Protective Tape
    6. Using a thin-bladed screwdriver wrapped with protective tape, release the lock button and disconnect the airbag connector.
    7. Using a thin-bladed screwdriver with its tip wrapped with protective tape, disconnect the clamp and remove the No. 2 lower instrument panel airbag assembly.
