Removal [01/2017 - 05/2023]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 10 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 10 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 10 [04/2020 - 05/2023]

  2. REMOVE FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 12 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 12 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 12 [04/2020 - 05/2023]

  3. REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 14 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 14 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 14 [04/2020 - 05/2023]

  4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 16 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 16 [04/2020 - 05/2023]

  5. REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY

    Refer to REMOVAL [01/2017 - 05/2023]

  6. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. REMOVE SHIFTING HOLE COVER ASSEMBLY

    Refer to PROCEDURE - Step 4

  8. REMOVE UPPER CONSOLE BOX

    Refer to PROCEDURE - Step 7

  9. REMOVE NO. 1 GLOVE COMPARTMENT PANEL

    Refer to PROCEDURE - Step 17 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 17 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 17 [04/2020 - 05/2023]

  10. REMOVE BOX PANEL SUB-ASSEMBLY
    1. Remove the 3 bolts and 2 screws.
      GTY787389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw

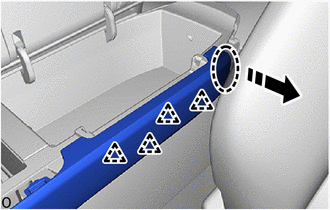

    2. Hold the area shown in the illustration and while pulling towards the exterior of the vehicle detach the clip.
      GTY831058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction

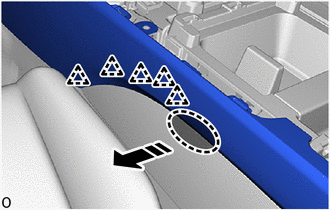

    3. Hold the area shown in the illustration and while pulling towards the exterior of the vehicle detach the clip.
      GTY819450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    4. Hold the area shown in the illustration, detach the claw and remove the box panel sub-assembly.
      GTY838427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
  11. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Move the front seat (RH side) to the rearmost position and remove the 2 bolts and 2 screws.
      GTY778935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
    2. Remove the bolt.
      GTY817912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

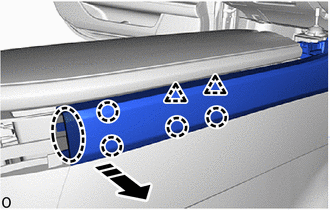

    3. Fold the front seatback (RH side) forward, hold the area shown in the illustration and while pulling towards the exterior of the vehicle detach the clip and claw.
      GTY790041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction

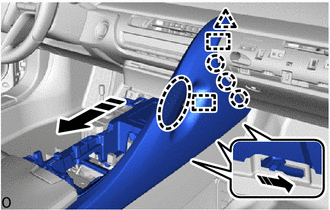

    4. Hold the area shown in the illustration while pulling it towards, the rear of the vehicle, detach the clip and claw and then pull out the guide from the instrument panel.
      GTY807362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction

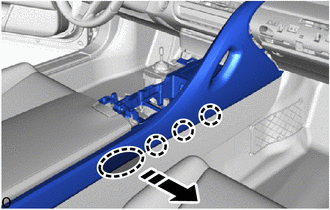

    5. Return the front seatback (RH side) to the original position, hold the area shown in the illustration and while pulling towards the exterior of the vehicle detach the claw.
      GTY795456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction

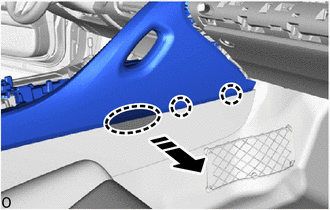

    6. Hold the area shown in the illustration and while pulling towards the exterior of the vehicle detach the claw.
      GTY833041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    7. Pull diagonally to the upper rear of the vehicle as indicated by the arrows shown in the illustration to remove the upper console panel sub-assembly.
      GTY814507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:

      A portion of the claw is inserted into mating hole. Therefore, hold the area shown in the illustration and remove it while lifting the claw towards the outside of the vehicle.

  12. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 19 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 19 [04/2020 - 05/2023]

  13. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 20 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 20 [04/2020 - 05/2023]

  14. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 21 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 21 [04/2020 - 05/2023]

  15. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

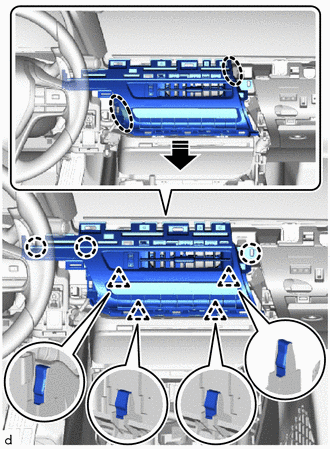

    1. Place your hand at the position shown in the illustration and pull the integration control and panel assembly towards the rear of the vehicle to detach the claw and clip and remove it.
      GTY812647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    2. Using a thin-bladed screwdriver, detach the clamp and Disconnect the 3 connectors.
      GTY829544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
