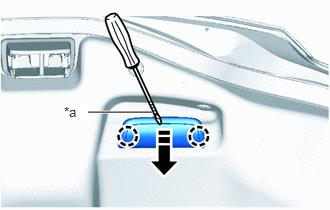

- REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

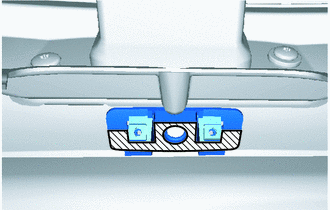

- Using a screwdriver, detach the claws of the cover in the direction indicated by the arrow in the illustration
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Protective Tape |
 |
Open in this Direction |
HINT:
Tape the screwdriver tip before use.
- Remove the 2 screws and luggage compartment door assist grip.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

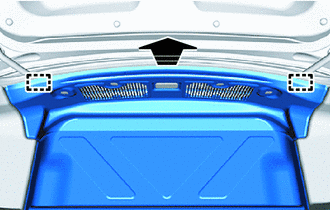

- REMOVE LUGGAGE COMPARTMENT DOOR COVER
- Using a clip remover, remove the 10 clips and luggage compartment door cover.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

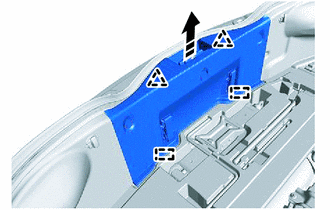

- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM BRACKET
- Remove the 3 screws and No. 1 luggage compartment trim bracket.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE OUTER LOWER LUGGAGE COMPARTMENT DOOR PANEL
Refer to PROCEDURE - Step 3
- REMOVE ACTIVE REAR WING (w/ Active Rear Wing)
Refer to REMOVAL [01/2017 - ]
- REMOVE TELEVISION CAMERA ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE LUGGAGE COMPARTMENT DOOR HOUSING
HINT:
When removing the luggage compartment door housing, heat the luggage compartment door housing using a heat light.
Standard
| Item |
Temperature |
| Luggage Compartment Door Housing |
20 to 30°C (68 to 86°F) |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |
- Detach the adhesional surface of the double-sided tape.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Double-sided Tape |
- Remove the luggage compartment door housing.
- Clean the luggage compartment door.
- REMOVE LUGGAGE DOOR LOCK PROTECTOR
See step 1
- REMOVE LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY
See step 2

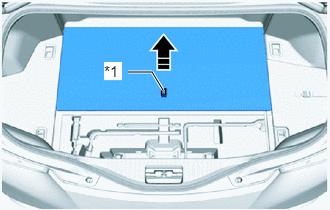

- REMOVE NO. 1 DECK BOARD

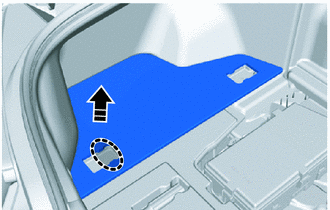

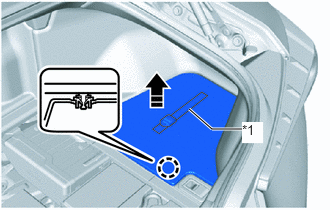

- Lift up the strap and remove the No. 1 deck board.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Strap |
|
Remove in this Direction |

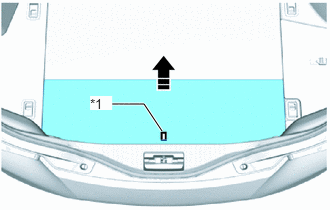

- REMOVE NO. 2 DECK BOARD
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Strap |
|
Remove in this Direction |
Lift up the strap and remove the No. 2 deck board.
- REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

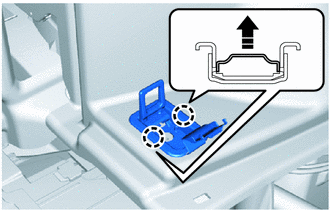

- Detach the claws and open the rope hook assembly caps.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Open in this Direction |

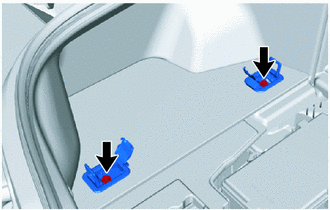

- Remove the 2 bolts and 2 rope hook assemblies.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Pull the entire luggage compartment trim cover LH to the rear while bending inward (in the direction of the arrow) to remove it.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Place hand here |
|
Remove in this Direction |
- REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Strap |
|
Remove in this Direction |
Detach the claw and lift up the strip, remove the luggage compartment trim cover RH.
- REMOVE SIDE TRIM BOX
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Open in this Direction |
Detach the claws and open the rope hook assembly cap.

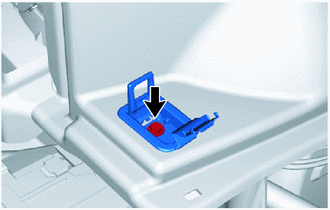

- Remove the bolt and rope hook assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

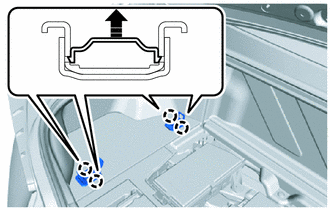

- Detach the claw and clips.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- Detach the guide and remove the side trim box.
- REMOVE REAR FLOOR FINISH PLATE
- Using a clip remover, remove the 3 clips.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

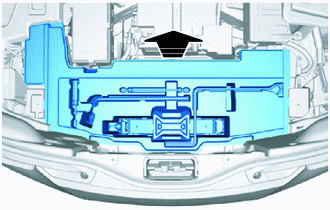

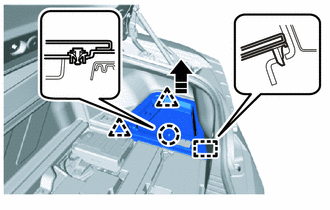

- Detach the clips and guides and remove the rear floor finish plate.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- REMOVE LUGGAGE COMPARTMENT TRIM BOX

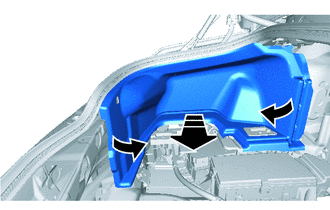

- Remove the luggage compartment trim box as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
- Remove the 2 clips.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

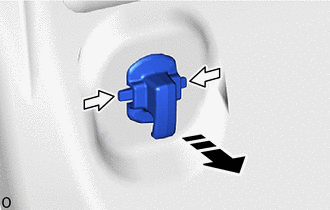

- Push the lever and remove the rope hook.
HINT:
Use the same procedure for the opposite side.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Push |
|
Remove in this Direction |
- Remove the 2 clips.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Detach the guides as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |

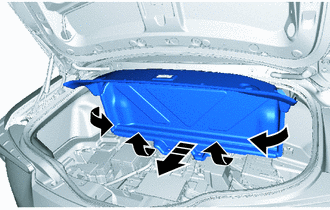

Remove the entire front luggage compartment trim cover while bending it inward (in the direction of the arrow).
- REMOVE INNER LUGGAGE COMPARTMENT TRIM COVER LH
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

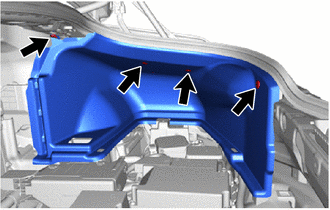

Remove the 4 clips.
- Remove the entire inner luggage compartment trim cover LH while bending it inward (in the direction of the arrow).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- REMOVE INNER LUGGAGE COMPARTMENT TRIM COVER RH
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Open in this Direction |

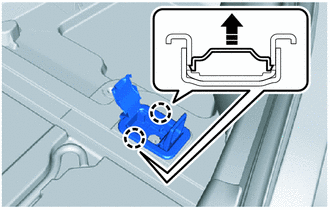

Detach the claws and open the rope hook assembly cap.

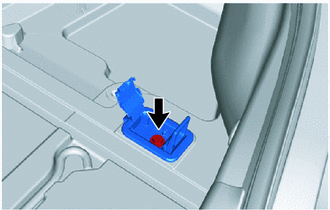

- Remove the bolt and rope hook assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

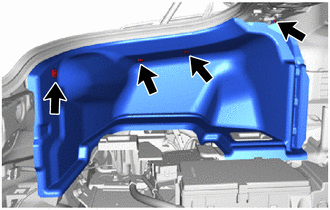

Remove the 4 clips and inner luggage compartment trim cover RH.
- REMOVE NO. 4 LUGGAGE ROOM WIRE
- Detach the clamps.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Detach the claws to the grommet.
- Detach the claws and remove the wire harness grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Detach the clamps and remove the No. 4 luggage room wire.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the connector.
- REMOVE SATELLITE RADIO ANTENNA ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE NO. 6 ANTENNA CORD SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
