Installation [03/2017 - 04/2020]: Procedure

  1. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for LH Side)
    1. Apply diluted liquid soap to the outside of a new rear suspension member rear body mounting cushion.
      GTY800781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Diluted Liquid Soap
      Front of the Vehicle
      NOTE:

      Do not use grease or undiluted liquid soap. Doing so may cause the rear suspension member front body mounting cushion to slip out.

      HINT:

      A 20% liquid soap and water concentration is recommended.

    2. Temporarily install the rear suspension member rear body mounting cushion while confirming the installation direction.
    3. Using SST, install the rear suspension member rear body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member rear body mounting cushion.
      • SST: 09316-12010
      • SST: 09570-24011
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09953-04030
        4. 09954-04020
        5. 09955-04051
        6. 09957-04010
        7. 09958-04011
      • SST: 09950-60021
        1. 09951-00910
      GTY801013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

  2. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for RH Side)

    HINT:

    Perform the same procedure as for the LH side.

  3. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH
    1. GTY795820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side
      *B for RH Side
      Diluted Liquid Soap
      Front of the Vehicle

      Apply diluted liquid soap to the outside of a new rear suspension member front body mounting cushion.

      NOTE:

      Do not use grease or undiluted liquid soap. Doing so may cause the rear suspension member front body mounting cushion to slip out.

      HINT:

      A 20% liquid soap and water concentration is recommended.

    2. Temporarily install the rear suspension member front body mounting cushion while confirming the installation direction.
    3. Using SST, install the rear suspension member front body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member front body mounting cushion.
      • SST: 09316-12010
      • SST: 09570-24011
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09953-04030
        4. 09954-04020
        5. 09955-04051
        6. 09957-04010
        7. 09958-04011
      • SST: 09950-60021
        1. 09951-00910
      GTY804971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Apply grease to the threads and tip of the SST center bolt before use.

  4. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH

    HINT:

    Perform the same procedure as for the LH side.

  5. INSTALL REAR SUSPENSION MEMBER REAR UPPER STOPPER
    1. Install the 2 rear suspension member rear upper stoppers to the rear suspension member sub-assembly.
  6. INSTALL REAR SUSPENSION MEMBER FRONT UPPER STOPPER
    1. Install the 2 rear suspension member front upper stoppers to the rear suspension member sub-assembly.
  7. TEMPORARILY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY LH (w/o Dynamic Rear Steering)

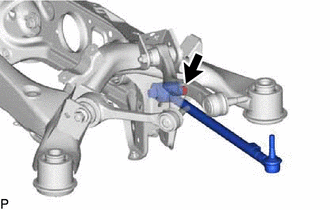

    1. Insert the rear suspension toe adjust cam sub-assembly from the front of the vehicle. Then temporarily tighten the rear No. 2 suspension toe adjust plate and toe control link sub-assembly LH with the nut.
      GTY813356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the matchmarks on the rear No. 2 suspension toe adjust plate and rear suspension member sub-assembly.
      GTY781358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
  8. TEMPORARILY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY RH (w/o Dynamic Rear Steering)

    HINT:

    Perform the same procedure as for the LH side.

  9. TEMPORARILY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH

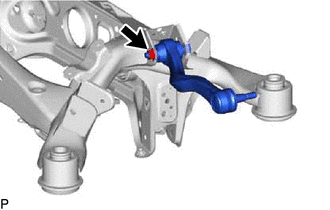

    1. GTY813354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Insert the bolt from the back of the vehicle. Then temporarily tighten the rear upper control arm assembly LH with the nut and washer.

  10. TEMPORARILY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  11. TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

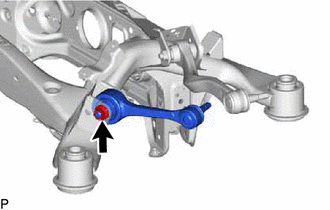

    1. GTY835654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Insert the bolt from the back of the vehicle. Then temporarily tighten the rear No. 1 suspension arm assembly LH with the nut and washer.

  12. TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  13. TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

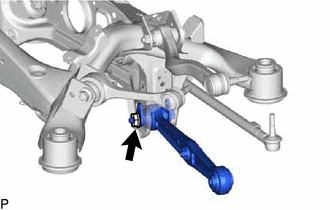

    1. GTY813358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Insert the rear suspension arm attachment sub-assembly from the back of the vehicle. Then temporarily tighten the rear No. 2 suspension toe adjust plate and rear No. 2 suspension arm assembly LH with the nut.

  14. TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  15. TEMPORARILY TIGHTEN LOWER CONTROL ARM ASSEMBLY LH

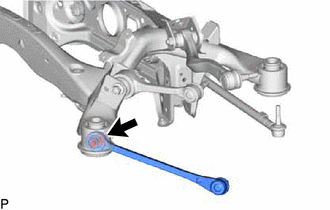

    1. GTY813357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Insert the bolt from the back of the vehicle. Then temporarily tighten the lower control arm assembly LH with the nut.

  16. TEMPORARILY TIGHTEN LOWER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  17. INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

    Refer to PROCEDURE - Step 1

  18. INSTALL REAR STABILIZER BAR

    See step  1

  19. INSTALL PARKING BRAKE WITH BRACKET ACTUATOR ASSEMBLY

    Refer to PROCEDURE - Step 6

  20. TEMPORARILY TIGHTEN REAR STABILIZER LINK ASSEMBLY LH

    See step  4

  21. TEMPORARILY TIGHTEN REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  22. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY
    1. Support the rear suspension member sub-assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.
      GTY802616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Attachment
      *b Engine Lifter
      Attachment placement location
      WARNING:
      • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
      GTY628581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Use attachments to keep the rear suspension member sub-assembly level.

    2. Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle body.
      NOTE:

      When raising the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

    3. Install the rear lower suspension member stopper LH, rear lower suspension member stopper RH, 2 rear lower suspension member stoppers and rear suspension member sub-assembly with the 8 bolts.

      Bolt A

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

      Bolt B

      Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

  23. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  24. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  25. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY

    Refer to INSTALLATION [03/2017 - ]

  26. STABILIZE SUSPENSION

    See step  7

  27. FULLY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY LH (w/o Dynamic Rear Steering)

    See step  4

  28. FULLY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY RH (w/o Dynamic Rear Steering)

    HINT:

    Perform the same procedure as for the LH side.

  29. FULLY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH

    See step  8

  30. FULLY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  31. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    See step  9

  32. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  33. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    See step  7

  34. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  35. FULLY TIGHTEN LOWER CONTROL ARM ASSEMBLY LH

    See step  6

  36. FULLY TIGHTEN LOWER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  37. FULLY TIGHTEN REAR STABILIZER LINK ASSEMBLY LH

    See step  7

  38. FULLY TIGHTEN REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  39. INSPECT TOE CONTROL LINK SUB-ASSEMBLY LH (w/o Dynamic Rear Steering)

    See step  1

  40. INSPECT TOE CONTROL LINK SUB-ASSEMBLY RH (w/o Dynamic Rear Steering)

    HINT:

    Perform the same procedure as for the LH side.

  41. INSPECT REAR UPPER CONTROL ARM ASSEMBLY LH

    See step  2

  42. INSPECT REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  43. INSPECT REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    See step  1

  44. INSPECT REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  45. INSPECT LOWER CONTROL ARM ASSEMBLY LH

    See step  1

  46. INSPECT LOWER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  47. CONNECT PARKING BRAKE WITH BRACKET ACTUATOR ASSEMBLY

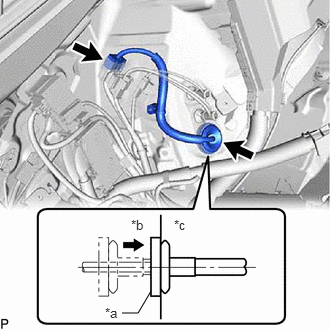

    1. Pass the connector through the hole to the inside of the vehicle and install the grommet of the parking brake actuator harness.
      GTY821045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet
      *b Outside of Vehicle
      *c Inside of Vehicle
    2. Connect the connector.

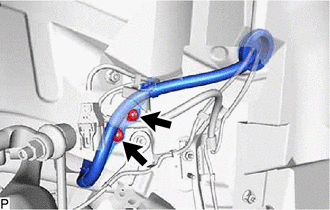

    3. Install the parking brake with bracket actuator assembly with the 2 nuts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      GTY777078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL INNER LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 4

  49. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 6

  50. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  51. INSTALL LUGGAGE COMPARTMENT TRIM BOX

    Refer to PROCEDURE - Step 8

  52. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 11

  53. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 9

  54. INSTALL NO. 1 DECK BOARD

    Refer to PROCEDURE - Step 14

  55. ADJUST PARKING BRAKE

    Refer to ADJUSTMENT [03/2017 - ]

  56. INSTALL REAR WHEEL

    Refer to INSTALLATION [03/2017 - 05/2023]

  57. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 04/2020]

  58. INSTALL NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13

  59. PARKING LOCK

    Refer to PROCEDURE - Step 3

  60. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT [03/2017 - 04/2020]

  61. ADJUST REAR TELEVISION CAMERA ASSEMBLY OPTICAL AXIS

    Refer to CALIBRATION [03/2017 - 05/2023]

  62. PERFORM DYNAMIC REAR STEERING SYSTEM CALIBRATION (w/ Dynamic Rear Steering)

    Refer to CALIBRATION [03/2017 - 09/2018] , or refer to CALIBRATION [09/2018 - ]

  63. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [03/2017 - 05/2023]

  64. PERFORM INITIALIZATION

    Refer to INITIALIZATION [03/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - ]

  65. PERFORM PARKING BRAKE SHOE BEDDING

    Refer to INITIALIZATION [03/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - ]
