Installation [03/2017 - 05/2023]: Procedure

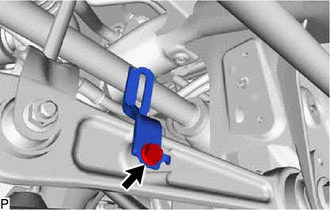

1. Install the load sensing valve sensor bracket with the bolt.

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

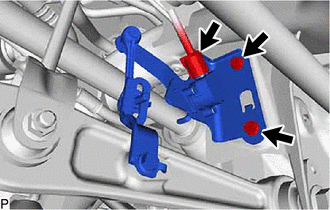

1. Install the rear height control sensor sub-assembly LH with the 2 bolts.

   Torque: 13.5 N.m (138 kgf/cm, 10 ft.lbf)

   NOTE:

   Do not drop the height control sensor LH. If it is dropped, replace it with a new one.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Connect the connector.
3. When reusing the load sensing valve sensor bracket:

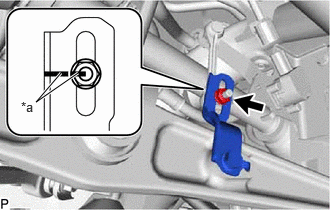

   1. Align the matchmarks on the height control sensor link and load sensing valve sensor bracket.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a

      Matchmark

4. When replacing the load sensing valve sensor bracket with a new one:
   1. Jack up the axle carrier with a wooden block between the jack and axle carrier. Apply a load to the rear suspension so that the rear No. 2 suspension arm assembly LH becomes level.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

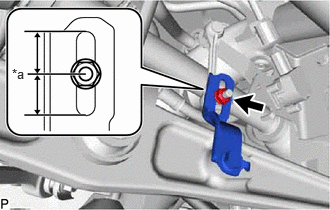

   2. Install the rear height control sensor link to load sensing valve sensor bracket with the nut.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

      HINT:

      Install the height control sensor link to the center of the long hole on the load sensor valve sensor bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Center of the long hole

Refer to INSTALLATION [03/2017 - 05/2023]

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 13 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - ]
