On-Vehicle Inspection [03/2017 - 05/2023]: Procedure

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 1

See step  8

Refer to PROCEDURE - Step 8

Refer to PROCEDURE - Step 9

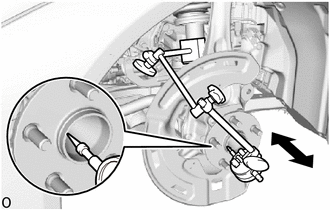

1. Using a dial indicator, check for looseness near the center of the rear axle hub.

   Maximum Looseness

   0.05 mm (0.00196 in.)

   NOTE:

   • Ensure that the dial indicator is set perpendicular to the measurement surface.
   • Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.

   If the looseness exceeds the maximum, replace the rear axle hub and bearing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

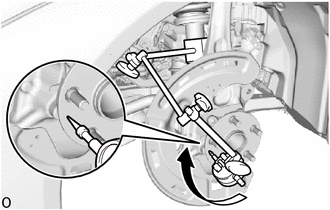

1. Using a dial indicator, check for runout on the surface of the rear axle hub outside the rear axle hub bolts.

   Maximum Runout

   0.05 mm (0.00196 in.)

   NOTE:

   • Ensure that the dial indicator is set perpendicular to the measurement surface.
   • Make sure to install the tip of the dial indicator towards the outside of the rear axle hub bolts.
   • Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.

   If the runout exceeds the maximum, replace the rear axle hub and bearing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

See step  21

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 6

Refer to INITIALIZATION [03/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - ]
