Removal [03/2017 - 05/2023]: Procedure

DISCONNECT BRAKE BOOSTER PUMP CONNECTOR
Refer to PROCEDURE - Step 2
REMOVE REAR WHEEL
Refer to REMOVAL [03/2017 - 05/2023]
DRAIN BRAKE FLUID
NOTE:
If brake fluid leaks onto any painted surface, immediately wash it off.
REMOVE REAR DISC BRAKE PAD
Refer to PROCEDURE - Step 4 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 4 [04/2020 - 05/2023]
REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
Refer to PROCEDURE - Step 5 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 5 [04/2020 - 05/2023]

DISCONNECT REAR FLEXIBLE HOSE

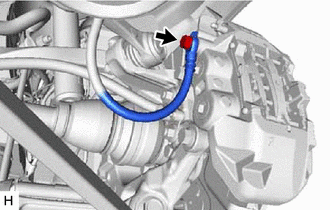

Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY LH

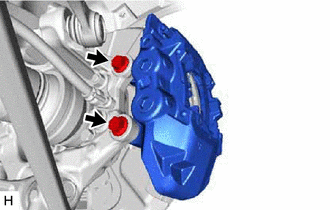

Remove the 2 bolts and rear disc brake cylinder assembly LH from the rear axle carrier sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
1. Remove the parking brake shoe adjusting hole plug from the rear disc LH.

REMOVE REAR DISC LH

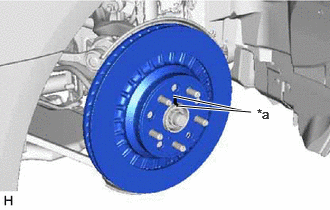

Put matchmarks on the rear disc LH and the rear axle hub and bearing assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Matchmark

HINT:

Not required when replacing the rear disc LH.

Release the parking brake and remove the rear disc LH.

HINT:

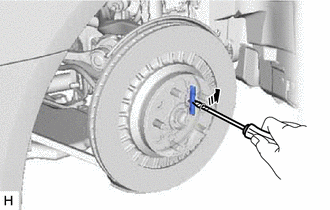

If the rear disc LH cannot be removed easily, use a screwdriver to turn the shoe adjuster as shown in the illustration in order to contract the parking brake shoes.

Contract
