Installation [03/2017 - 05/2023]: Procedure

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

1. Check the identification mark to determine the installation side.
   NOTE:

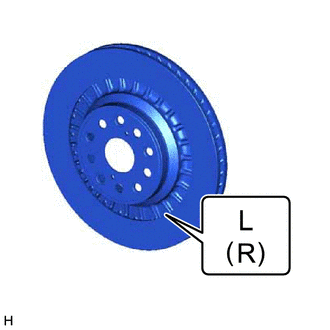

   The rear disc needs to be installed to the correct side of the vehicle. There is a "L", indicating the disc for the left wheel, or a "R", indicating the disc for the right wheel, engraved on the disc in the position shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. When reusing the rear disc LH:

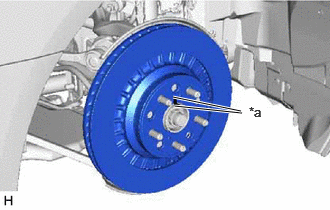

   1. Align the matchmarks of the rear disc and rear axle hub and bearing assembly LH, and install the rear disc LH.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a

      Matchmark

3. When replacing the rear disc LH:
   1. Inspect the rear disc runout.

      See step  5

   2. Select the installation position where the rear disc has minimal runout, and install the rear disc LH.
4. Temporarily install the 5 hub nuts.

1. Install the parking brake shoe adjusting hole plug to rear disc LH.

1. Install the rear disc brake cylinder assembly LH to the rear axle carrier sub-assembly LH with the 2 bolts.

   Torque: 151 N.m (1540 kgf/cm, 111 ft.lbf)

1. Connect the rear flexible hose to the rear disc brake cylinder assembly LH with a new union bolt and a new gasket.

   Torque: 39.2 N.m (400 kgf/cm, 29 ft.lbf)

   NOTE:

   Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly LH.

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 1

Refer to ADJUSTMENT [03/2017 - ]

Refer to INSTALLATION [03/2017 - 05/2023]

Refer to INITIALIZATION [03/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - ]
