Home >> Lexus >> 2021 >> LC 500 2D Coupe >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Body Panels / Trim - Service Information (Coupe) (2 Of 2) >> Roof Headlining >> Reassembly [03/2017 - ] >> Procedure

Reassembly [03/2017 - ]: Procedure

  1. INSTALL NO. 1 ROOF WIRE
    1. When using a new roof headlining assembly:

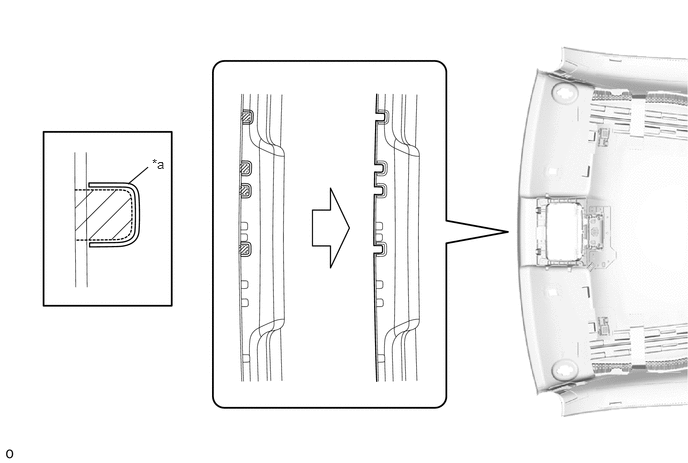

      1. Using a knife, cut the roof headlining at the markings as shown in the illustration.

        HINT:

        Make sure to cut the roof headlining at the same positions as the removed roof headlining.

        GTY952479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Marking - -
        Cut Area - -
    2. for Glass Roof:

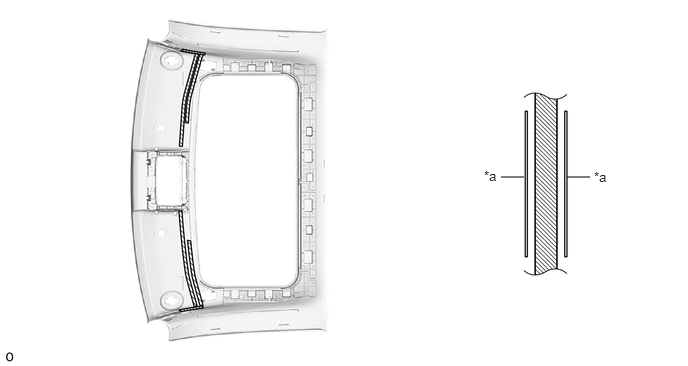

      1. Apply a new butyl tape as shown in the illustration.
        GTY833991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Marking - -
        Butyl Tape - -
        NOTE:

        Apply securely so that the butyl tape will not shift or peel off.

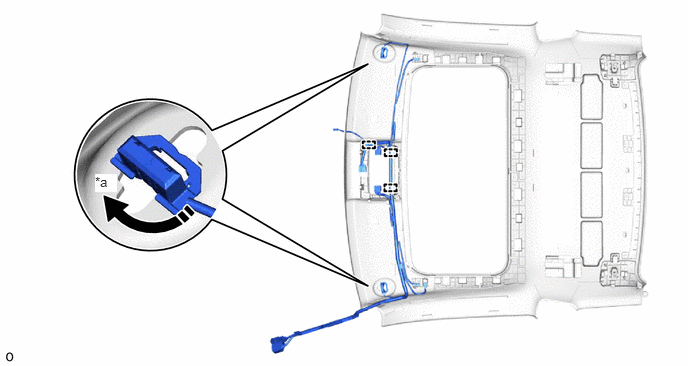

      2. Turn the visor connectors approximately 90° clockwise and connect to the roof headlining assembly.
        GTY832270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 90° - -
      3. Attach the clamps.

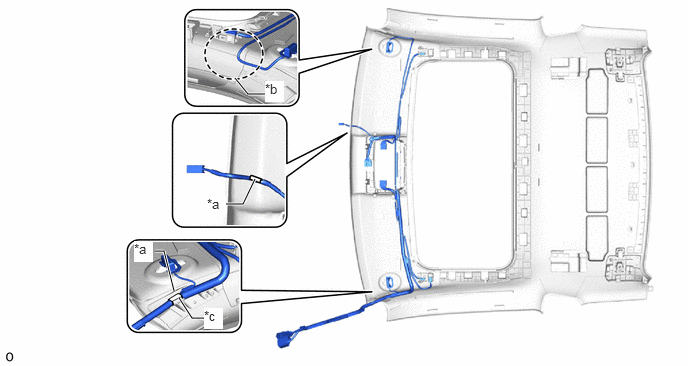

      4. Set No. 1 roof wire positioning tape at the position shown in the illustration on the No. 1 roof wire.
        GTY812564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Positioning Tape *b Adjustment Area
        *c Roof Set Position - -

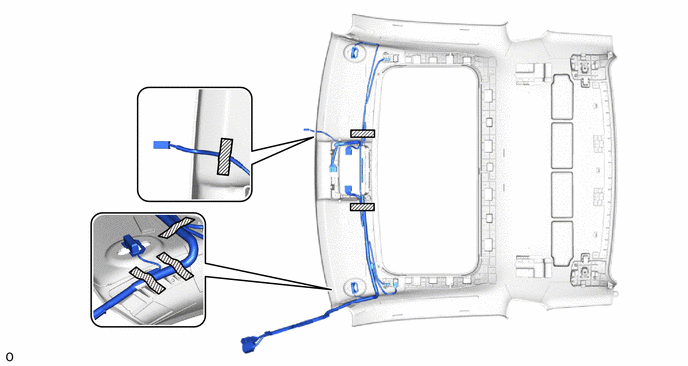

      5. Apply fastening tape to the position shown in the illustration to install the No. 1 roof wire to the roof headlining assembly.
        GTY806314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fastening Tape - -
    3. for Carbon Roof:

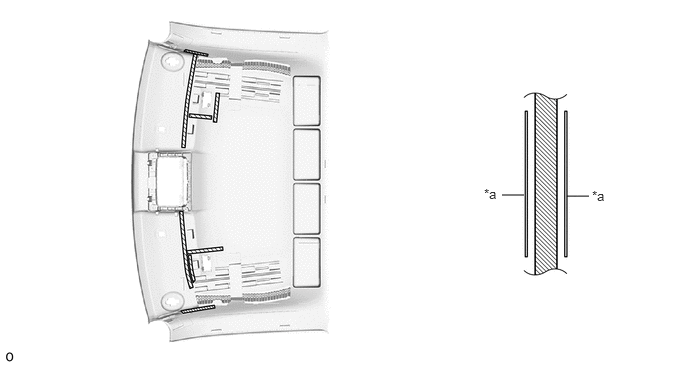

      1. Apply a new butyl tape as shown in the illustration.
        GTY787599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Marking - -
        Butyl Tape - -
        NOTE:

        Apply securely so that the butyl tape will not shift or peel off.

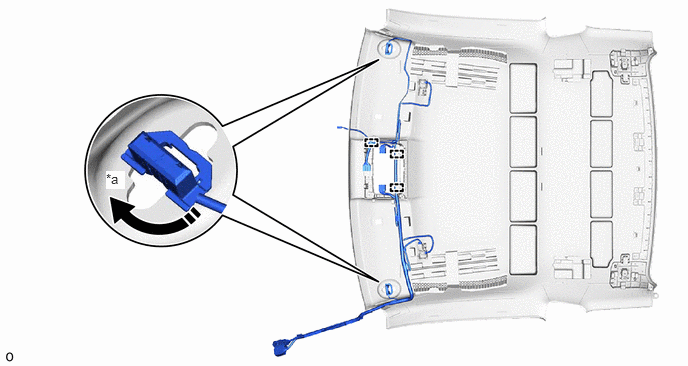

      2. Turn the visor connectors approximately 90° clockwise and connect to the roof headlining assembly.
        GTY792570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 90° - -
      3. Attach the clamps.

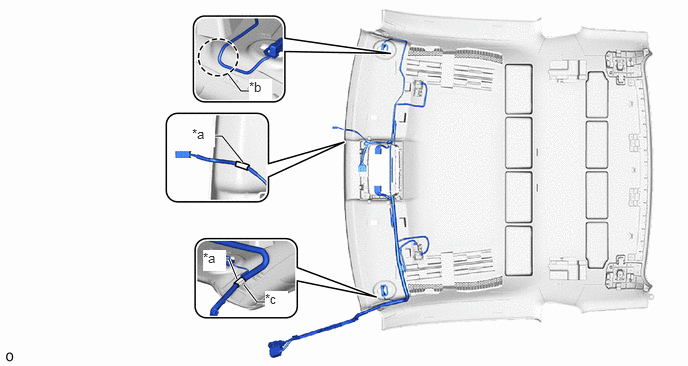

      4. Set No. 1 roof wire positioning tape at the position shown in the illustration on the No. 1 roof wire.
        GTY821391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Positioning Tape *b Adjustment Area
        *c Roof Set Position - -

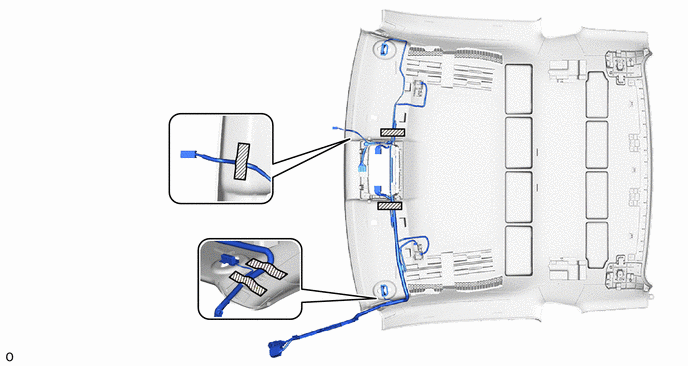

      5. Apply fastening tape to the position shown in the illustration to install the No. 1 roof wire to the roof headlining assembly.
        GTY815061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fastening Tape - -
  2. INSTALL ROOF SILENCER PAD (for Carbon Roof)

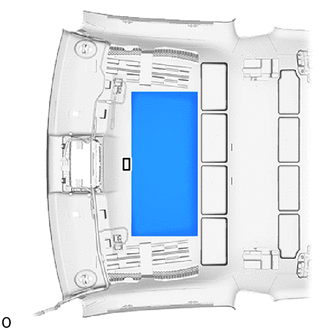

    1. Using double-sided tape or three cement yellow, install a new roof silencer pad in the position shown in the illustration.
      GTY783243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Marking
  3. INSTALL ROOF HEADLINING HOLDER COVER

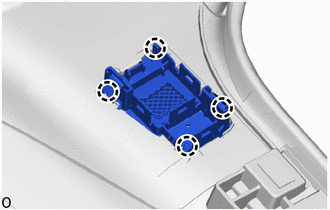

    1. Attach the claws to install the roof headlining holder cover.
      GTY824267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

  4. INSTALL TELEPHONE MICROPHONE ASSEMBLY

    Refer to PROCEDURE - Step 1 [03/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]

  5. INSTALL ACTIVE NOISE CONTROL MICROPHONE

    Refer to PROCEDURE - Step 4 [03/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]

  6. INSTALL COAT HOOK

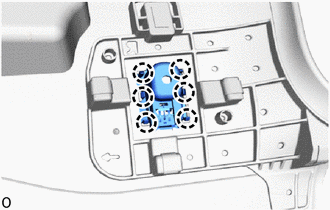

    1. Attach the claws to install the coat hook.
      GTY824168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.
