Installation [03/2017 - 05/2023]: Procedure

INSTALL MICROPHONE WIRE (for Rear Side)

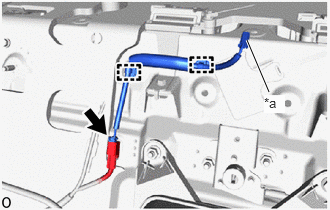

Attach the clamps to install the microphone wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Connector color: black (microphone side)

NOTE:

The connectors used on the microphone side and vehicle wire harness side are the same shape. Make sure they are no mixed up when connecting.

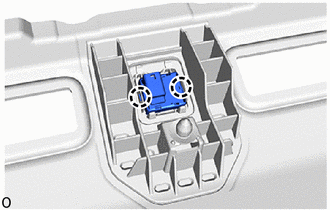

INSTALL ACTIVE NOISE CONTROL MICROPHONE (for Rear Side)

Attach the claws to install the active noise control microphone.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (for Rear Side)
Refer to INSTALLATION [03/2017 - 05/2023]

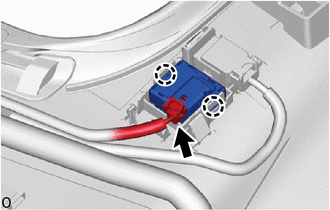

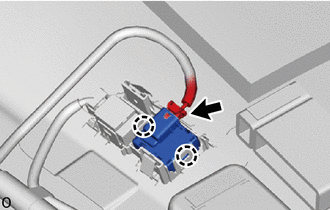

INSTALL ACTIVE NOISE CONTROL MICROPHONE (for Front Side)

for Glass Roof:

for Carbon Roof:

INSTALL ROOF HEADLINING ASSEMBLY (for Front Side)
Refer to INSTALLATION [03/2017 - 05/2023]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]
INSTALL NO. 2 DECK BOARD
Refer to PROCEDURE - Step 13 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - ]
PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [03/2017 - 04/2020] , or refer to DTC CHECK / CLEAR [04/2020 - ]
CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [03/2017 - 04/2020] , or refer to OPERATION CHECK [04/2020 - ]
