Installation [03/2017 - 05/2023]: Procedure

  1. INSTALL TELEPHONE MICROPHONE ASSEMBLY

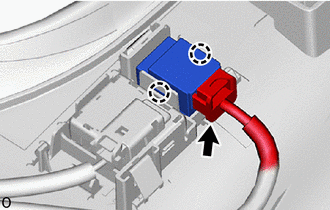

    1. For Glass Roof:
      1. Attach the claws to install the telephone microphone assembly.
        GTY787712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the connector.

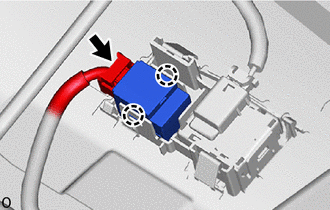

    2. For Carbon Roof:
      1. Attach the claws to install the telephone microphone assembly.
        GTY787713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the connector.
  2. INSTALL ROOF HEADLINING ASSEMBLY

    Refer to INSTALLATION [03/2017 - 05/2023]

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

  4. INSTALL NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - ]

  5. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [03/2017 - 04/2020] , or refer to DTC CHECK / CLEAR [04/2020 - ]

  6. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [03/2017 - 04/2020] , or refer to OPERATION CHECK [04/2020 - ]
