Disassembly [03/2017 - 06/2019]: Procedure

  1. REMOVE NO. 3 LUGGAGE ROOM WIRE
    1. w/ Intuitive Parking Assist System:

      Refer to PROCEDURE - Step 7

    2. w/o Intuitive Parking Assist System:
      GTY838055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 3 connectors.
      2. Detach the clamps and remove the No. 3 luggage room wire.
  2. REMOVE REAR CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  3. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    HINT:

    Use the same procedure as for the rear corner ultrasonic sensor.

  5. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    HINT:

    Use the same procedure as for the rear corner ultrasonic sensor retainer.

  6. REMOVE ULTRASONIC SENSOR CLIP

    HINT:

    • Perform this step only when necessary.
    • Use the same procedure for each ultrasonic sensor clip.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    Ultrasonic Sensor Clip 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Using a heat light, heat the rear bumper cover and ultrasonic sensor clip.

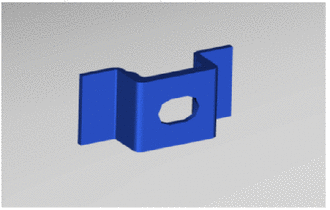

    2. GTY824223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the ultrasonic sensor clip.

  7. REMOVE BACK-UP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. REMOVE LICENSE PLATE LIGHT SUB-ASSEMBLY
    1. Remove the retainer.
      GTY828412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claws and remove the license plate light sub-assembly.
  9. REMOVE NO. 1 MOULDING TAPE

    HINT:

    When removing the No. 1 moulding tape, heat the rear bumper cover and No. 1 moulding tape using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    No. 1 Moulding Tape
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Using a heat light, heat the rear bumper cover and No. 1 moulding tape.

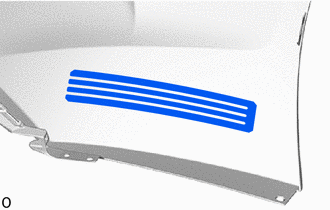

    2. for Type A:
      1. Remove the No. 1 moulding tape.
        GTY950241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Use the same procedure for the RH side and LH side.

    3. for Type B:

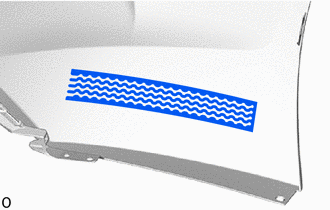

      1. Remove the No. 1 moulding tape.
        GTY950238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Use the same procedure for the RH side and LH side.

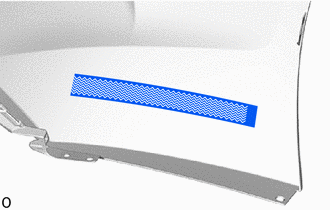

    4. for Type C:
      1. Remove the No. 1 moulding tape.
        GTY950054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Use the same procedure for the RH side and LH side.

  10. REMOVE REAR BUMPER PIECE LH

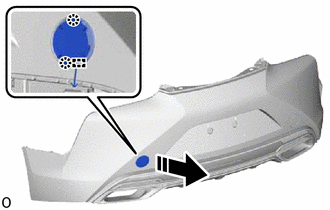

    1. Detach the claws.
      GTY779308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the anti-drop hook and remove the rear bumper piece LH as shown in the illustration.
  11. REMOVE REAR BUMPER PIECE RH

    HINT:

    Use the same procedure described for the LH side.

  12. REMOVE REAR BUMPER EXTENSION SUB-ASSEMBLY LH
    1. Remove the 4 screws.
      GTY780071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

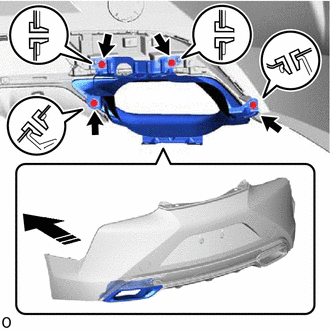

    2. Remove the 4 grommets.
      GTY776752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Remove the rear bumper extension sub-assembly LH as shown in the illustration.
  13. REMOVE REAR BUMPER EXTENSION SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  14. REMOVE REAR BUMPER CENTER EXTENSION SUB-ASSEMBLY
    1. Remove the 6 screws.
      GTY780289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips.

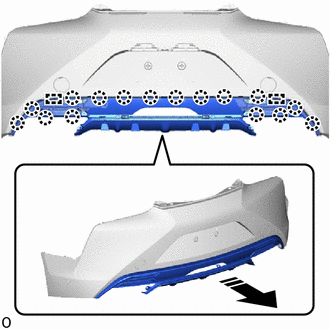

    3. Detach the guides and claws and remove the rear bumper center extension sub-assembly as shown in the illustration.
      GTY782967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  15. REMOVE REAR BUMPER CENTER PAD

    HINT:

    When removing the rear bumper center pad, heat the rear bumper cover and rear bumper center pad using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    Rear Bumper Center Pad
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Using a heat light, heat the rear bumper cover and rear bumper center pad.

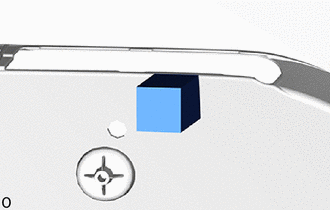

    2. Remove the rear bumper center pad.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY824209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR BUMPER NO. 1 PAD

    HINT:

    When removing the rear bumper No. 1 pad, heat the rear bumper cover and rear bumper No. 1 pad using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    Rear Bumper No. 1 Pad
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Using a heat light, heat the rear bumper cover and rear bumper No. 1 pad.

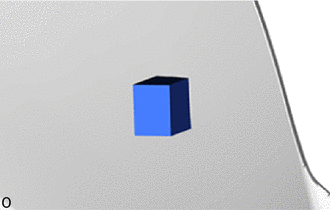

    2. Remove the rear bumper No. 1 pad.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY824210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR BUMPER PAD

    HINT:

    When removing the rear bumper pad, heat the rear bumper cover and rear bumper pad using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    Rear Bumper Pad
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Using a heat light, heat the rear bumper cover and rear bumper pad.

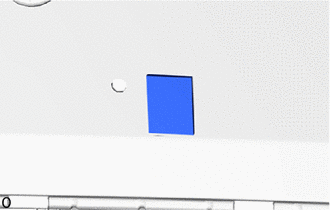

    2. Remove the rear bumper pad.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY824208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REFLEX REFLECTOR ASSEMBLY LH
    1. Remove the screw.
      GTY787868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

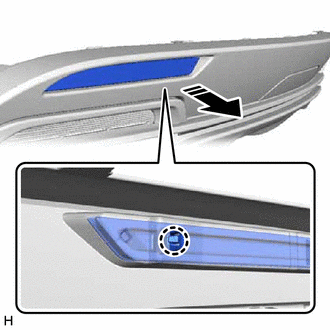

    2. Detach the claw and remove the reflex reflector assembly LH.
      GTY835548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  19. REMOVE REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  20. REMOVE REAR BUMPER EXTENSION LH
    1. Remove the 2 screws.
      GTY788611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

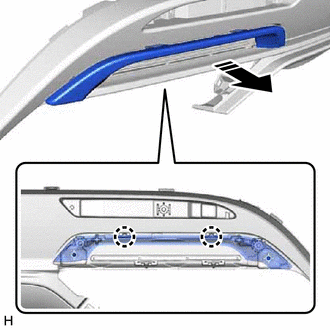

    2. Detach the claws and remove the rear bumper extension LH.
      GTY802308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  21. REMOVE REAR BUMPER EXTENSION RH

    HINT:

    Use the same procedure described for the LH side.

  22. REMOVE REAR BUMPER EXTENSION
    1. Remove the 2 screws.
      GTY830230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claws and remove the rear bumper extension.
  23. REMOVE REAR BUMPER CORNER EXTENSION LH

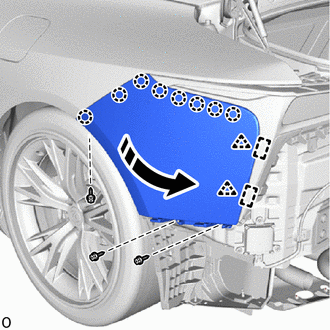

    1. Remove the 3 screws.
      GTY801802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn Direction
    2. Detach the claws.
    3. With the guides as a starting point, turn the rear bumper corner extension LH to detach the clips and guides and remove the rear bumper corner extension LH as shown in the illustration.
  24. REMOVE REAR BUMPER CORNER EXTENSION RH

    HINT:

    Use the same procedure described for the LH side.

  25. REMOVE REAR BUMPER PAD INSERT

    HINT:

    When removing the rear bumper pad insert, heat the rear bumper corner extension LH and rear bumper pad insert using a heat light.

    Standard

    Item Temperature
    Rear Bumper Corner Extension LH 20 to 30°C (68 to 86°F)
    Rear Bumper Pad Insert 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Using a heat light, heat the rear bumper corner extension LH and rear bumper pad insert.

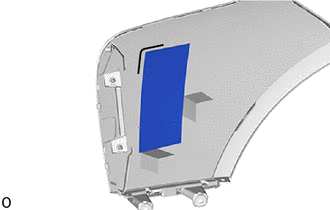

    2. Remove the rear bumper pad insert.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY824234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR BUMPER NO. 3 PAD

    HINT:

    When removing the rear bumper No. 3 pad, heat the rear bumper corner extension LH and rear bumper No. 3 pad using a heat light.

    Standard

    Item Temperature
    Rear Bumper Corner Extension LH 20 to 30°C (68 to 86°F)
    Rear Bumper No. 3 Pad
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Using a heat light, heat the rear bumper corner extension LH and rear bumper No. 3 pad.

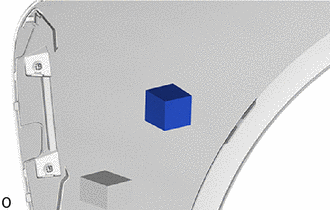

    2. Remove the rear bumper No. 3 pad.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY838057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR BUMPER NO. 2 PAD

    HINT:

    When removing the rear bumper No. 2 pad, heat the rear bumper corner extension LH and rear bumper No. 2 pad using a heat light.

    Standard

    Item Temperature
    Rear Bumper Corner Extension LH 20 to 30°C (68 to 86°F)
    Rear Bumper No. 2 Pad
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Using a heat light, heat the rear bumper corner extension LH and rear bumper No. 2 pad.

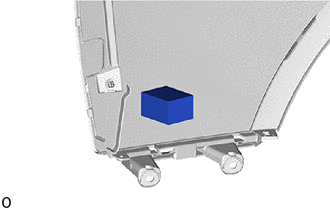

    2. Remove the rear bumper No. 2 pad.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY824232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REAR BUMPER NO. 2 SIDE SUPPORT LH

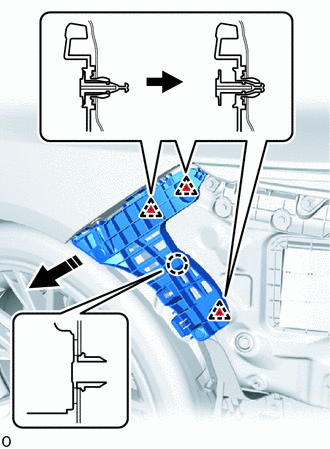

    1. Detach the clips and claw and remove the rear bumper No. 2 side support LH.
      GTY821524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  29. REMOVE REAR BUMPER NO. 2 SIDE SUPPORT RH

    HINT:

    Use the same procedure described for the LH side.

  30. REMOVE REAR BUMPER NO. 4 SIDE SUPPORT LH
    1. Remove the 2 clips.
      GTY787797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

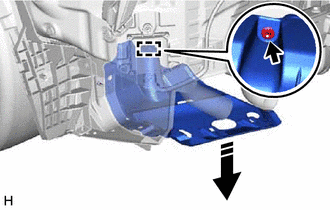

    2. Remove the grommet and rear bumper No. 4 side support LH.
      GTY788916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  31. REMOVE REAR BUMPER NO. 4 SIDE SUPPORT RH

    HINT:

    Use the same procedure described for the LH side.

  32. REMOVE REAR BUMPER NO. 1 SIDE SUPPORT LH
    1. Remove the 2 grommets.
      GTY787870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

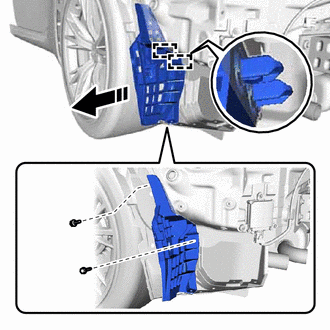

    2. Remove the 2 screws.
      GTY776002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Detach the guides and remove the rear bumper No. 1 side support LH.
  33. REMOVE REAR BUMPER NO. 1 SIDE SUPPORT RH

    HINT:

    Use the same procedure described for the LH side.

  34. REMOVE REAR BUMPER ARM REINFORCEMENT LH
    1. Remove the 2 bolts.
      GTY824184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guide and remove the rear bumper arm reinforcement LH.
  35. REMOVE REAR BUMPER ARM REINFORCEMENT RH

    HINT:

    Use the same procedure described for the LH side.

  36. REMOVE REAR BUMPER BAR REINFORCEMENT LH
    1. Remove the 3 bolts and rear bumper bar reinforcement LH.
      GTY824213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR BUMPER BAR REINFORCEMENT RH

    HINT:

    Use the same procedure described for the LH side.

  38. REMOVE REAR BUMPER ENERGY ABSORBER
    GTY824212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the claws.
    2. Detach the guides and remove the rear bumper energy absorber.
  39. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the 10 bolts and rear bumper reinforcement sub-assembly.
      GTY838052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
