Removal [03/2017 - 04/2020]: Procedure

Refer to REMOVAL [03/2017 - ]

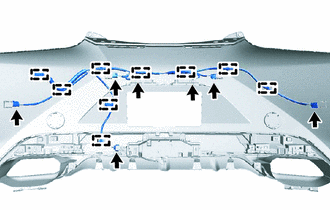

1. Disconnect the 7 connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Detach the clamps and remove the No. 3 luggage room wire.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

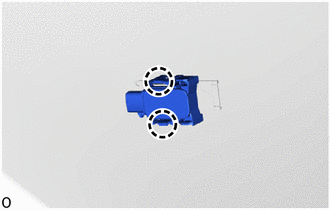

   Detach the claws and remove rear corner ultrasonic sensor.

   NOTE:

   Before removing the sensor, make sure to mark the sensor and rear bumper cover so that each sensor can be returned to its original position.

HINT:

When removing the rear corner ultrasonic sensor retainer, heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.

1. Heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

   Standard

   Item	Temperature
   Rear Bumper Assembly	20 to 30°C (68 to 86°F)
   Rear Corner Ultrasonic Sensor Retainer

   WARNING:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Heated Part
   *b	Heat Light

   • Do not touch the heat light and heated parts.
   • Touching the heat light may result in burns.
   • Touching heated parts for a long time may result in burns.
2. Remove the rear corner ultrasonic sensor retainer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure described for the rear corner ultrasonic sensor.

HINT:

Use the same procedure described for the rear corner ultrasonic sensor retainer.

HINT:

• When removing the ultrasonic sensor clip, heat the bumper assembly and ultrasonic sensor clip using a heat light.
• Use the same procedure for the other ultrasonic sensor clips.

1. Heat the rear bumper assembly and ultrasonic sensor clip using a heat light at the specified temperature for 3 to 5 minutes.

   Standard

   Item	Temperature
   Rear Bumper Assembly	20 to 30°C (68 to 86°F)
   Ultrasonic Sensor Clip

   WARNING:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Heated Part
   *b	Heat Light

   • Do not touch the heat light and heated parts.
   • Touching the heat light may result in burns.
   • Touching heated parts for a long time may result in burns.
2. Remove the ultrasonic sensor clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
