Removal [03/2017 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [03/2017 - ]

  2. REMOVE BACK-UP LIGHT ASSEMBLY
    1. Disconnect the connector.

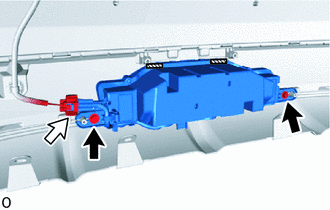

      GTY777143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
      Double-sided Tape Application Area
    2. Remove the 2 screws.
    3. Remove the 2 pieces of double-sided tape and the back-up light assembly.
