Removal [07/2020 - ]: Procedure

REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 14 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 14 [05/2023 - ]
REMOVE FRONT FENDER SEAL LH
Refer to PROCEDURE - Step 1
REMOVE FRONT FENDER SEAL RH
Refer to PROCEDURE - Step 2
REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 17 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 17 [05/2023 - ]
REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 18 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 18 [05/2023 - ]
REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 19 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 19 [05/2023 - ]
REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY
Refer to PROCEDURE - Step 20 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 20 [05/2023 - ]

REMOVE FRONT STABILIZER LINK ASSEMBLY LH

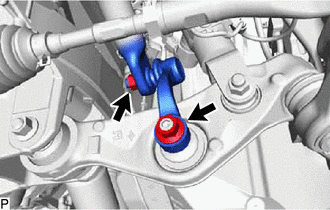

Remove the 2 nuts and front stabilizer link assembly LH from the lower No. 2 suspension arm assembly LH and front stabilizer bar.

HINT:

If the ball joint turns together with the nut, use a 8 mm hexagon wrench to hold the stud bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.

REMOVE FRONT STABILIZER BAR

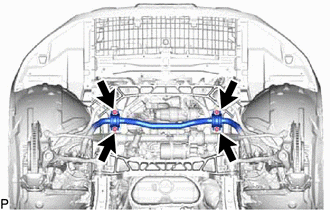

Remove the 4 bolts and front stabilizer bar.

HINT:

The stabilizer bracket and bush are built onto the stabilizer bar. If the bracket and/or bush detach from the bar, replace the bar.
