Installation [07/2020 - ]: Procedure

INSTALL FRONT STABILIZER BAR

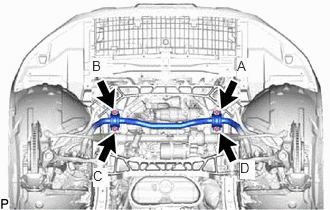

Install the front stabilizer bar with the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 120 N.m (1224 kgf/cm, 89 ft.lbf)

NOTE:

Temporarily tighten the bolt (A), and then fully tighten the 4 bolts in the order of (B), (C), (D), and (A).

INSTALL FRONT STABILIZER LINK ASSEMBLY LH
1. Install the front stabilizer link assembly LH to the lower No. 2 suspension arm assembly LH and front stabilizer bar with the 2 nuts.
  Torque: 125 N.m (1275 kgf/cm, 92 ft.lbf)

  HINT:

  If the ball joint turns together with the nut, use a 8 mm hexagon wrench to hold the stud bolt.
INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.
INSTALL STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY
Refer to PROCEDURE - Step 137 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 140 [05/2023 - ]
INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 138 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 141 [05/2023 - ]
INSTALL FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 139 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 142 [05/2023 - ]
INSTALL FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 140 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 143 [05/2023 - ]
INSTALL FRONT FENDER SEAL LH
Refer to PROCEDURE - Step 22
INSTALL FRONT FENDER SEAL RH
Refer to PROCEDURE - Step 21
INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 143 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 146 [05/2023 - ]
