Removal [07/2020 - 05/2023]: Procedure

PRECAUTION

WARNING:

Be sure to read precaution thoroughly before servicing.

Refer to PRECAUTION [07/2020 - 05/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Refer to PRECAUTION [07/2020 - ]

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Refer to REMOVAL [07/2020 - 05/2023]

WARNING:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [07/2020 - 05/2023]

REMOVE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 9 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 05/2023]
REMOVE FRONT DOOR OPENING TRIM COVER RH
HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 11 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 05/2023]
REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER RH
Refer to PROCEDURE - Step 14 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - 05/2023]
REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 27 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 27 [10/2022 - 05/2023]
REMOVE NO. 1 GLOVE COMPARTMENT PANEL
Refer to PROCEDURE - Step 16 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - 05/2023]
REMOVE NO. 2 GLOVE COMPARTMENT PANEL
Refer to PROCEDURE - Step 28 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 28 [10/2022 - 05/2023]
REMOVE CONSOLE PLATE
Refer to PROCEDURE - Step 1
REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY
Refer to PROCEDURE - Step 2
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE SHIFTING HOLE COVER ASSEMBLY
Refer to PROCEDURE - Step 4
REMOVE UPPER CONSOLE BOX
Refer to PROCEDURE - Step 7
REMOVE BOX PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 10
REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 11

REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

WARNING:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Deployment Side

When storing the lower No. 2 instrument panel airbag assembly, keep the airbag deployment side facing upward.
If the airbag deploys for any reason, it may cause a serious accident.

Check that the engine switch is off.
Check that the cable is disconnected from the negative (-) battery terminal.
WARNING:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.

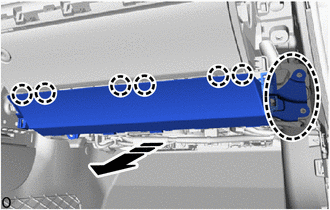

Remove the 3 bolts.

	Remove in this Direction
	Place Hands Here

Place your hand at the position shown in the illustration and pull toward the rear of the vehicle to detach the claw and pull out the No. 2 lower instrument panel airbag assembly.

Tilt the lower No. 2 instrument panel airbag assembly toward the seat and support it with one hand.

Disconnect the airbag connector.
NOTE:
When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [07/2020 - 05/2023]
Using a thin-bladed screwdriver, detach the clamp and remove the lower No. 2 instrument panel airbag assembly.
HINT:

Tape the thin-bladed screwdriver tip before use.
