Installation [07/2020 - 05/2023]: Procedure

  1. INSTALL COOLER CONDENSER ASSEMBLY
    1. Install the sub radiator assembly to the cooler condenser assembly with the 2 bolts.

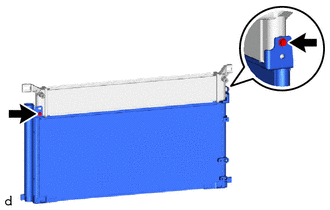

      GTY806075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.0 N.m (92 kgf/cm, 80 in.lbf)

    2. Insert the cooler condenser assembly and sub radiator assembly into the vehicle and into the guide.
      NOTE:

      When inserting the cooler condenser assembly and sub radiator assembly, do not damage the cooler condenser assembly, sub radiator assembly and radiator assembly.

      HINT:

      If the cooler condenser assembly is replaced with a new one, add compressor oil to the new cooler condenser assembly.

      Capacity

      40 cc (1.35 fl.oz)

      Compressor Oil

      ND-OIL 12 or equivalent

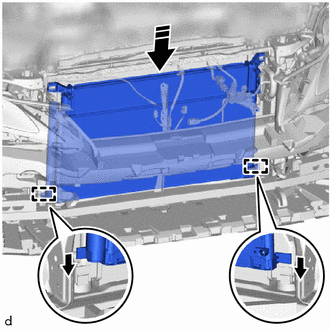

      GTY794436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in the Direction
    3. Attach the claw to install the cooler condenser assembly with sub radiator assembly.

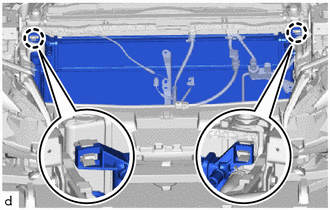

      GTY804158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape from the discharge hose sub-assembly and the connecting part of the cooler condenser assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the hose joint.

      Compressor Oil

      ND-OIL 12 or equivalent

    3. Install the O-ring to the discharge hose sub-assembly.
      NOTE:

      Keep the O-rings and O-ring fitting surfaces free of foreign matter.

    4. Connect the discharge hose sub-assembly to the cooler condenser assembly with the bolt.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

      NOTE:
      • Do not apply excessive force to the discharge hose sub-assembly.
      • Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)

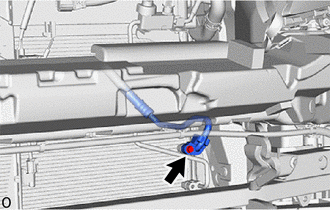

      GTY963138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT LIQUID TUBE SUB-ASSEMBLY A
    1. Remove the vinyl tape from the liquid tube sub-assembly A and the connecting part of the cooler condenser assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the tube joint.

      Compressor Oil

      ND-OIL 12 or equivalent

    3. Install the O-ring to the liquid tube sub-assembly A.
      NOTE:

      Keep the O-rings and O-ring fitting surfaces free of foreign matter.

    4. Connect the liquid tube sub-assembly A and No. 1 cooler refrigerant hose bracket to the cooler condenser assembly with the 2 bolts.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

      NOTE:
      • Do not apply excessive force to the liquid tube sub-assembly A.
      • Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)

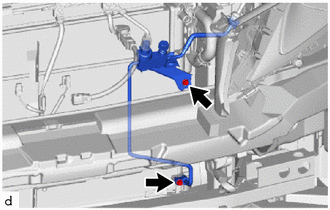

      GTY804157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT NO. 2 RADIATOR HOSE SUB-ASSEMBLY
    1. Connect the No. 2 radiator hose sub-assembly with its marking aligned with the positioning rib as shown in the illustration and install the hose clips within the range shown in the illustration.
      NOTE:
      • Do not apply excessive force to the sub radiator assembly or No. 2 radiator hose sub-assembly.
      • Make sure the hose is securely inserted to the stopper. However, if the end of the hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.
      • Install the hose clips 2 to 5 mm (0.0787 to 0.197 in.) mm away from the end of the hose.

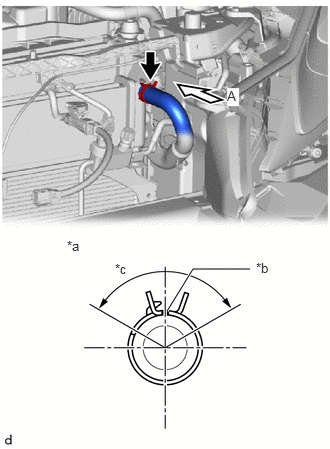

      GTY799893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (Yellow)
      *c Hose Clip Installation Angle (120°)
  5. CONNECT RADIATOR HOSE SUB-ASSEMBLY
    1. Connect the radiator hose sub-assembly with its marking aligned with the positioning rib as shown in the illustration and install the hose clips within the range shown in the illustration.
      NOTE:
      • Do not apply excessive force to the sub radiator assembly or radiator hose sub-assembly.
      • Make sure the hose is securely inserted to the stopper. However, if the end of the hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.
      • Install the hose clips 2 to 5 mm (0.0787 to 0.197 in.) mm away from the end of the hose.

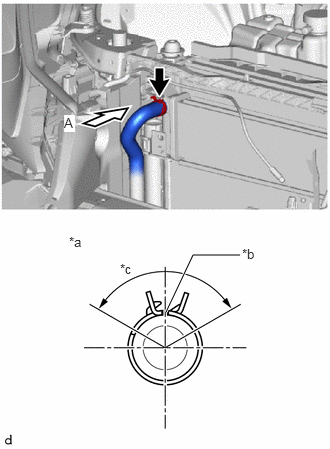

      GTY803746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (Yellow)
      *c Hose Clip Installation Angle (120°)
  6. INSTALL UPPER RADIATOR SUPPORT
    1. Attach the upper radiator support to the 2 radiator support cushions and install the upper radiator support with the 5 bolts as shown in the illustration.

      Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

      NOTE:

      When installing the upper radiator support, do not damage the cooler condenser assembly, sub radiator assembly and radiator assembly.

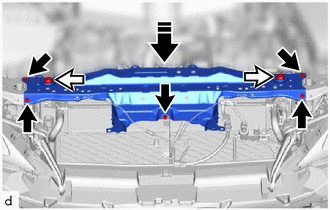

      GTY816584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Radiator Support Cushion
      Install in this Direction
    2. Attach the clamp to connect the engine room main wire.

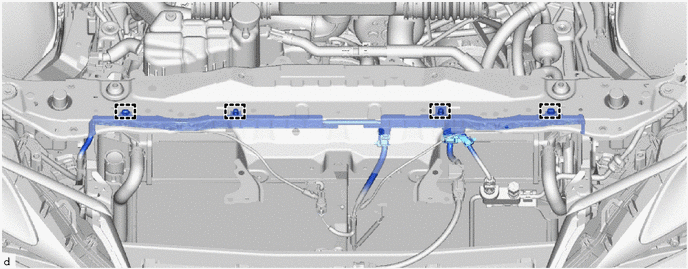

      GTY833626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH
    1. Install the lower arm bracket brace sub-assembly RH with the 2 bolts.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

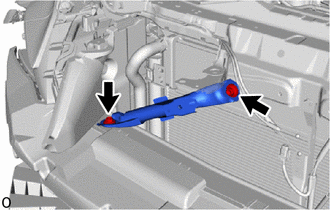

      GTY964262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH
    1. Install the lower arm bracket brace sub-assembly LH with the 2 bolts.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

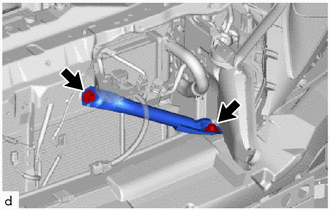

      GTY785508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL LOW PITCHED HORN ASSEMBLY

    Refer to PROCEDURE - Step 1

  10. INSTALL HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 2

  11. INSTALL HOOD LOCK CONTROL CABLE COVER LH

    Refer to PROCEDURE - Step 3

  12. INSTALL HOOD LOCK CONTROL CABLE COVER RH
    1. Attach the clamp and install the hood lock control cable cover RH.

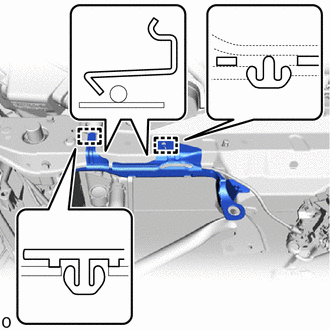

      GTY779548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL AIR (WITH ELEMENT) CLEANER ASSEMBLY WITH AIR CLEANER INLET
    NOTE:

    Check that the air cleaner support is properly installed to the specified position on the air cleaner support bracket and upper radiator support.

    1. Install the air (with element) cleaner assembly with air cleaner inlet to the air cleaner support.

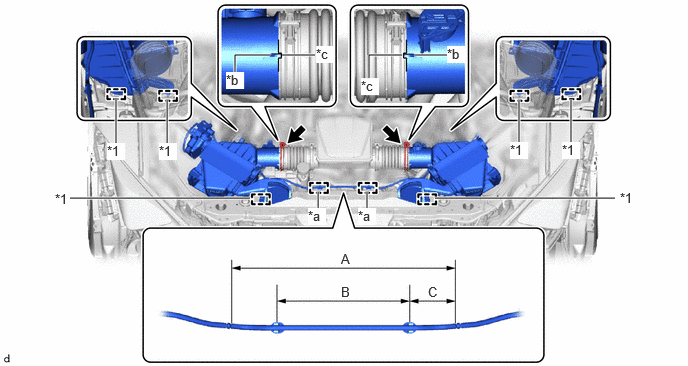

      GTY960001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Air Cleaner Support - -
      *a Clamp *b Protrusion
      *c Cutout - -
      No. 2 Air Cleaner Hose Clamp - -
    2. Attach the clamp as shown in the illustration.

      Installation Position

      Part Length
      A 310 mm (1.02 ft.)
      B 176 to 186 mm (6.93 to 7.32 in.)
      C 60.5 to 68.5 mm (2.38 to 2.70 in.)
    3. Align the cutout of the No. 2 air cleaner hose with the protrusion of the air (with element) cleaner assembly with air cleaner inlet and connect the air (with element) cleaner assembly with air cleaner inlet as shown in the illustration.
      NOTE:

      Insert the air (with element) cleaner assembly with air cleaner inlet until it hits the stopper.

    4. for LH side of vehicle:
      1. Tighten the No. 2 air cleaner hose clamp as shown in the illustration.

        Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

        NOTE:

        Install the intake No. 2 air cleaner hose clamp so that it contacts the No. 2 air cleaner hose positioning stopper.

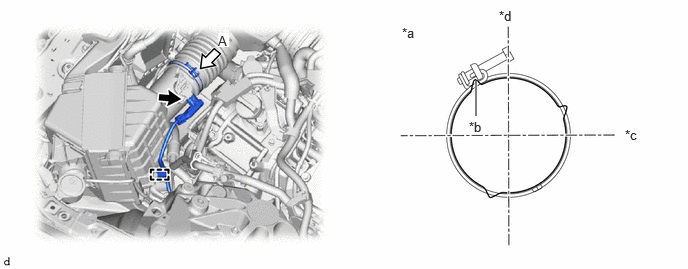

        GTY963183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a View A *b Positioning Stopper
        *c Front of Vehicle *d Top of Vehicle
      2. Connect the connector.
      3. Attach the clamp.
    5. for RH side of vehicle:
      1. Tighten the No. 2 air cleaner hose clamp as shown in the illustration.

        Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

        NOTE:

        Install the intake No. 2 air cleaner hose clamp so that it contacts the No. 2 air cleaner hose positioning stopper.

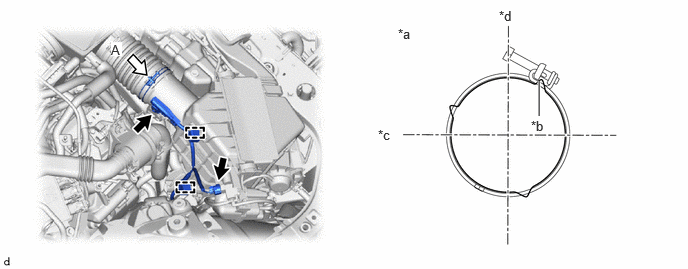

        GTY963653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a View A *b Positioning Stopper
        *c Front of Vehicle *d Top of Vehicle
      2. Connect the 2 connectors.
      3. Attach the clamp.
      4. Connect the vacuum hose to the connector as shown in the illustration.

        Installation Position

        Part Length
        A 2 mm (0.0787 in.) or less

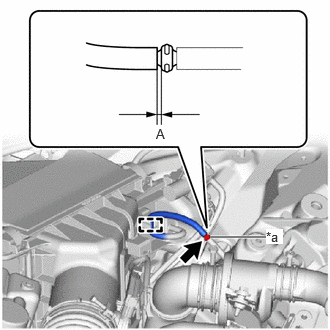

        GTY963453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Connector
      5. Install the vacuum hose to the guide.
  14. INSTALL RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
    1. Install the radiator support to crossmember brace sub-assembly RH with the bolt (A) and bolt (B).

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

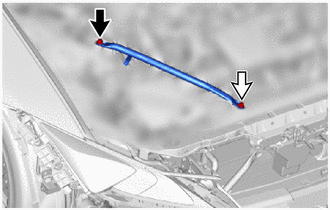

      GTY963155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A)
      Bolt (B)
  15. INSTALL RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH
    1. Install the radiator support to crossmember brace sub-assembly LH with the bolt (A) and bolt (B).

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

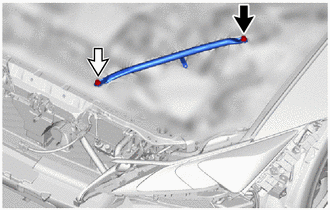

      GTY964385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A)
      Bolt (B)
  16. INSPECT FITTING OF HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  17. ADJUST HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  18. INSTALL HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 4

  19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [07/2020 - 05/2023]

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [07/2020 - 05/2023]

  20. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 12

  21. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 3

  22. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 5

  23. WARM UP ENGINE

    Refer to PROCEDURE - Step 6

  24. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 7

  25. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [07/2020 - 05/2023]

  26. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 138

  27. INSTALL FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 139

  28. INSTALL FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 140

  29. INSTALL FRONT FENDER SEAL LH

    Refer to PROCEDURE - Step 22

  30. INSTALL FRONT FENDER SEAL RH

    Refer to PROCEDURE - Step 21

  31. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 143

  32. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 147

  33. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [07/2020 - ]

  34. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [07/2020 - ]
