Adjustment [07/2020 - ]: Procedure

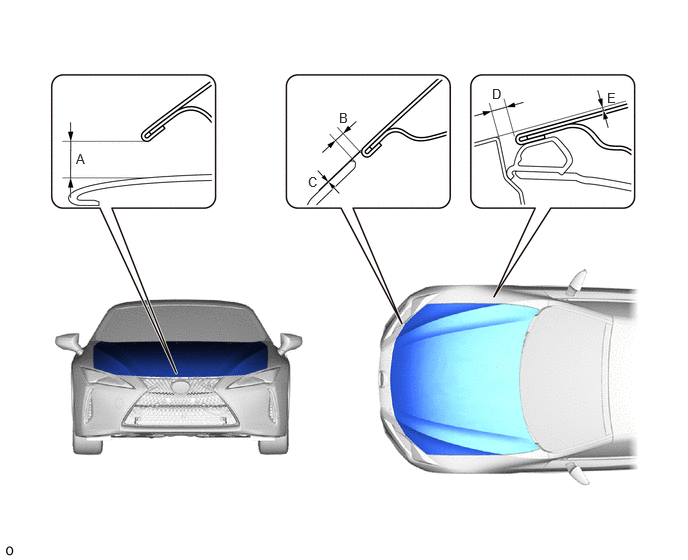

1. Check that the clearance measurements of areas A to E are within the standard ranges.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Clearance

   Area	Specified Condition	Area	Specified Condition
   A (Reference)	15.85 mm (0.624 in.)	B	1.85 to 5.85 mm (0.073 to 0.230 in.)
   C	-1.85 to 2.25 mm (-0.073 to 0.089 in.)	D (Reference)	3.4 mm (0.134 in.)
   E (Reference)	1.3 mm (0.051 in.)	-	-

Refer to PROCEDURE - Step 1 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]

Refer to PROCEDURE - Step 9 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

Refer to PROCEDURE - Step 3 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]

See step  5 [07/2020 - 05/2023], or see step  5 [05/2023 - ]

1. Adjust the hood position.

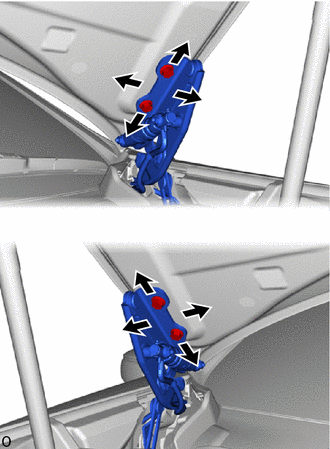

   1. Loosen the 4 hinge bolts on the hood and adjust the hood position.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Move the hood and adjust the clearance between the hood and front fender.
   3. Tighten the 4 hinge bolts on the hood after the adjustment.

      Torque: 13 N.m (133 kgf/cm, 9.6 ft.lbf)

2. Adjust the height of the front end of the hood using the hood bumper cushions.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

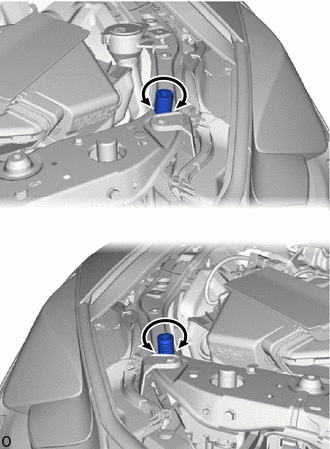

   1. Adjust the 2 cushion rubbers so that the hood and fender are aligned.

      HINT:

      Raise or lower the front end of the hood by turning the 2 cushion rubbers.

3. Adjust the hood lock.

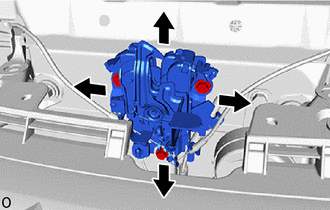

   1. Loosen the 3 bolts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Adjust the hood lock position so that the striker can enter it smoothly.
   3. Tighten the 3 bolts after the adjustment.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

See step  4

Refer to PROCEDURE - Step 8 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 8 [05/2023 - ]

Refer to PROCEDURE - Step 9 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 9 [05/2023 - ]

Refer to PROCEDURE - Step 10 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 10 [05/2023 - ]
