Removal [05/2023 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE RADIATOR SUPPORT TO FRAME SEAL RH

    Refer to PROCEDURE - Step 1

  3. REMOVE RADIATOR SUPPORT TO FRAME SEAL LH

    Refer to PROCEDURE - Step 2

  4. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 3

  5. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
  6. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 14

  7. DISCONNECT FRONT STABILIZER BAR

    Refer to PROCEDURE - Step 10

    HINT:

    Remove only 2 bolts and 2 nuts on the LH side.

  8. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
    1. Remove the bolt (A).
      GTY963854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A)
      Bolt (B)
    2. Remove the bolt (B) and radiator support to crossmember brace sub-assembly RH.
  9. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH
    1. Remove the bolt (A).
      GTY964423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A)
      Bolt (B)
    2. Remove the bolt (B) and radiator support to crossmember brace sub-assembly LH.
  10. DISCONNECT NO. 2 PCV HOSE

    Refer to PROCEDURE - Step 6

  11. DISCONNECT NO. 3 PCV HOSE

    Refer to PROCEDURE - Step 7

  12. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 8

  13. REMOVE AIR (WITH ELEMENT) CLEANER ASSEMBLY WITH AIR CLEANER INLET
    1. for RH side of vehicle:
      1. Detach the guide.

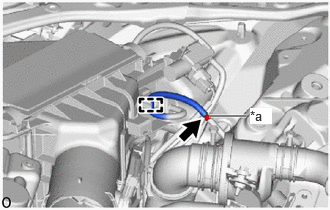

        GTY963172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Connector
      2. Disconnect the vacuum hose from the connector.
        NOTE:

        Do not apply excessive force to the vacuum hose.

      3. Detach the clamp.
        GTY964226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Disconnect the 2 connectors.
    2. for LH side of vehicle:
      1. Detach the clamp.
        GTY964225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector.
    3. Remove the air (with element) cleaner assembly with air cleaner inlet from the clamp.

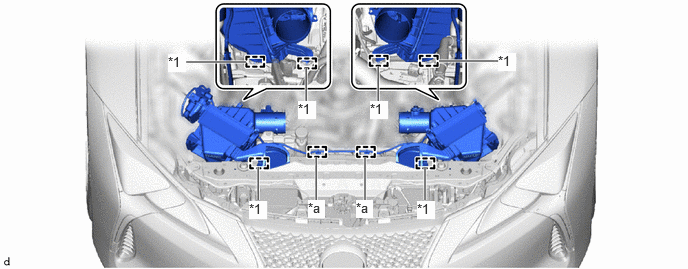

      GTY959991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Air Cleaner Support - -
      *a Clamp - -
    4. Remove the air (with element) cleaner assembly with air cleaner inlet from the air cleaner support.
      NOTE:

      When removing the air (with element) cleaner assembly with air cleaner inlet, be careful not to lose the air cleaner support on the underside of the air (with element) cleaner assembly with air cleaner inlet.

  14. REMOVE INTAKE AIR CONNECTOR PIPE

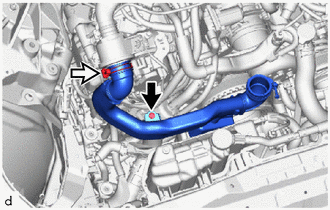

    1. Loosen the intake air connector pipe hose clamp.
      GTY809960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Intake Air Connector Pipe Hose Clamp
    2. Remove the bolt and intake air connector pipe.
  15. REMOVE FAN AND GENERATOR V BELT

    Refer to PROCEDURE - Step 9

  16. DISCONNECT SUCTION HOSE SUB-ASSEMBLY
    1. Remove the nut and disconnect the suction hose sub-assembly from the suction tube sub-assembly B.
      NOTE:

      Do not apply excessive force to the suction hose sub-assembly and suction tube sub-assembly B.

      GTY964153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  17. REMOVE AIR CLEANER SUPPORT BRACKET ASSEMBLY
    1. Remove the 2 bolts and air cleaner support bracket assembly.
      GTY964155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the bolt and disconnect the discharge hose sub-assembly from the compressor assembly with pulley.
      NOTE:

      Do not apply excessive force to the discharge hose sub-assembly.

      GTY964151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  19. REMOVE SUCTION HOSE SUB-ASSEMBLY
    1. Remove the bolt and suction hose sub-assembly from the compressor assembly with pulley.
      NOTE:

      Do not apply excessive force to the suction hose sub-assembly.

      GTY964152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  20. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY

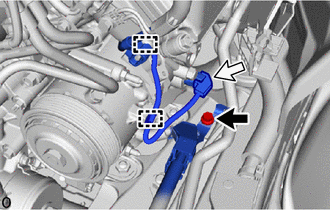

    1. Remove the bolt and disconnect the wiring harness clamp bracket.
      GTY963799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the connector.
    3. Detach the clamp and disconnect the engine wire.

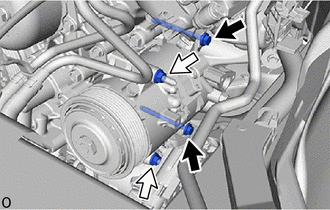

    4. Remove the 2 bolts and 2 nuts.
      GTY964281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    5. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor assembly with pulley.
      NOTE:

      Do not drop or subject the parts to any impact.

      GTY963199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
