Removal [05/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [05/2023 - ]

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [05/2023 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [05/2023 - ]

  4. REMOVE NO. 2 FUEL TUBE SUB-ASSEMBLY
    NOTE:

    Remove any dirt or foreign matter on the fuel tube connector and fuel pipe before performing this work.

    1. Remove the fuel pipe clamp from fuel tube connector.
      GTY617281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check that there is no dirt or other foreign matter around the fuel tube connector before disconnecting it. Clean the joint if necessary.

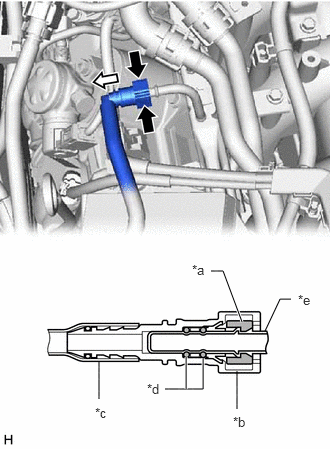

    3. Disconnect the No. 2 fuel tube sub-assembly from the fuel delivery pipe sub-assembly.
      GTY684478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Fuel Tube Connector
      *c Nylon Tube
      *d O-ring
      *e Fuel Pipe
      Pinch
      Pull
    4. Detach the 2 claws to remove the No. 2 fuel pipe clamp.
      NOTE:

      Do not reuse the No. 2 fuel pipe clamp.

      GTY802529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw
    5. Remove the No. 2 fuel tube sub-assembly from the fuel pipe (for Vehicle side).

      Refer to PRECAUTION [05/2023 - ]

  5. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  6. REMOVE RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 14

  7. REMOVE RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 13

  8. REMOVE AIR CLEANER WITH ELEMENT ASSEMBLY RH

    Refer to PROCEDURE - Step 28

  9. REMOVE AIR CLEANER WITH ELEMENT ASSEMBLY LH

    Refer to PROCEDURE - Step 29

  10. REMOVE INTAKE AIR CONNECTOR PIPE

    Refer to PROCEDURE - Step 9

  11. REMOVE INTAKE AIR SOUND CREATOR

    Refer to PROCEDURE - Step 10

  12. REMOVE NO. 2 INTAKE AIR CONNECTOR PIPE

    Refer to PROCEDURE - Step 11

  13. REMOVE AIR CLEANER HOSE CLAMP

    Refer to PROCEDURE - Step 12

  14. REMOVE FRONT FENDER SEAL LH

    Refer to PROCEDURE - Step 1

  15. REMOVE FRONT FENDER SEAL RH

    Refer to PROCEDURE - Step 2

  16. REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  17. REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 18

  18. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 19

  19. DISENGAGE ENGINE WIRE

    Refer to PROCEDURE - Step 20

  20. REMOVE INJECTOR DRIVER

    See step  4

  21. REMOVE INJECTOR DRIVER BRACKET

    Refer to PROCEDURE - Step 25

  22. REMOVE WATER BY-PASS PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26

  23. REMOVE PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 2

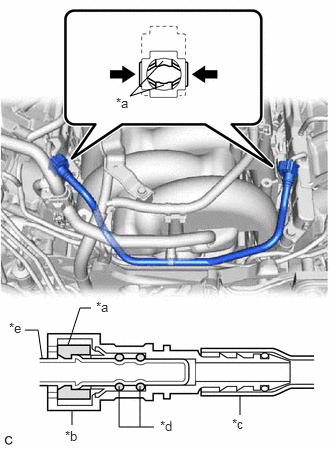

  24. REMOVE FUEL TUBE SUB-ASSEMBLY
    1. Remove the fuel tube sub-assembly from the fuel delivery pipe sub-assembly and No. 2 fuel delivery pipe sub-assembly.

      Refer to PRECAUTION [05/2023 - ]

      GTY509260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Fuel Tube Connector
      *c Nylon Tube
      *d O-ring
      *e Fuel Pipe
      Pinch
      NOTE:

      Remove any dirt or foreign matter on the fuel tube connector and fuel pipe before performing this work.

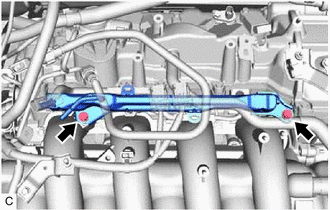

  25. REMOVE NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY (for Bank 1)
    1. Remove the 2 bolts and No. 2 fuel delivery pipe sub-assembly with the port fuel injector assemblies.
      GTY516886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to drop the port fuel injector assemblies when removing the No. 2 fuel delivery pipe sub-assembly.

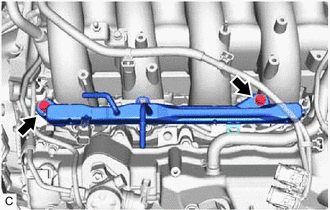

  26. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY (for Bank 2)
    1. Remove the 2 bolts and fuel delivery pipe sub-assembly with the port fuel injector assemblies.
      GTY516887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to drop the port fuel injector assemblies when removing the fuel delivery pipe sub-assembly.

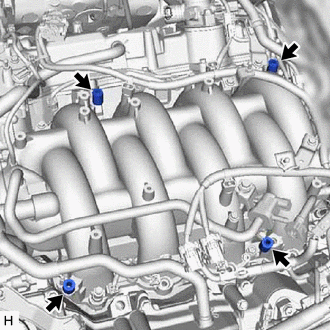

  27. REMOVE NO. 1 DELIVERY PIPE SPACER
    1. Remove the 4 No. 1 delivery pipe spacers from the intake air surge tank assembly.
      GTY617276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

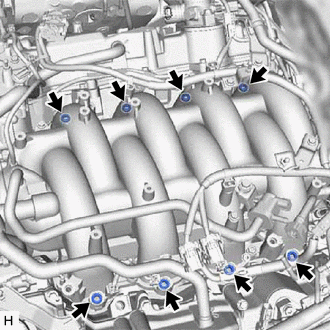

  28. REMOVE INJECTOR VIBRATION INSULATOR
    1. Remove the 8 injector vibration insulators from the intake air surge tank assembly.
      GTY617277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE PORT FUEL INJECTOR ASSEMBLY
    1. Disengage the 3 clamps and disconnect the No. 6 engine wire from the fuel delivery pipe sub-assembly.
      GTY960485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Delivery Pipe Sub-assembly
      *2 No. 2 Fuel Delivery Pipe Sub-assembly
      *3 No. 6 Engine Wire
      *4 No. 7 Engine Wire
      *a for Bank 1
      *b for Bank 2
    2. Disengage the 3 clamps and disconnect the No. 7 engine wire from the No. 2 fuel delivery pipe sub-assembly.
    3. Remove the 8 port fuel injector assemblies from the fuel delivery pipe sub-assembly and No. 2 fuel delivery pipe sub-assembly.
      NOTE:

      If the port fuel injector assemblies are to be reused, reinstall them to the same cylinder they were removed from.

    4. Disconnect the 8 port fuel injector assembly connectors.
      GTY960501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a for Bank 1
      *b for Bank 2
    5. Remove the O-ring from each port fuel injector assembly.
      GTY517480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
    6. For reinstallation, attach a tag or label with the corresponding cylinder number to each port fuel injector assembly.
      NOTE:

      Protect the port fuel injector assemblies by covering them with plastic bags.
