Removal [07/2020 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

  2. REMOVE PURGE VSV
    1. Detach the clamp and disconnect the wire harness from the wire harness bracket.

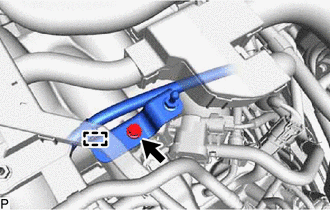

      GTY775453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and wire harness bracket from the intake air surge tank assembly.
    3. Slide the clip and disconnect the fuel vapor feed hose from the purge VSV.

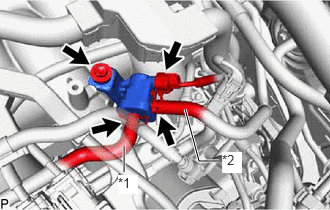

      GTY803216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Vapor Feed Hose
      *2 No. 1 Fuel Vapor Feed Hose
    4. Slide the clip and disconnect the No. 1 fuel vapor feed hose from the purge VSV.
    5. Disconnect the purge VSV connector.
    6. Remove the bolt and purge VSV from the intake air surge tank assembly.
