Installation [05/2023 - ]: Procedure

  1. INSTALL FRONT ROOF HEADLINING TRIM
    1. Attach the clip to install the front roof headlining trim.
      GTY953693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 screws.
      GTY953688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the 2 connectors.
      GTY953708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL VISOR HOLDER

    HINT:

    Use the same procedure for the opposite side.

    1. Attach the claw as shown in the illustration.
      GTY953710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

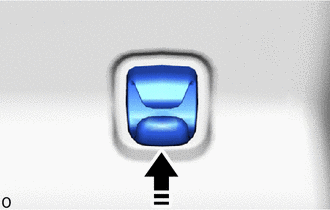

    2. Push in the end of the visor holder to install the visor holder.
      GTY954021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Set the visor assembly LH to the visor holder.
  3. INSTALL RAIN SENSOR COVER

    Refer to PROCEDURE - Step 3

  4. INSTALL MAP LIGHT ASSEMBLY

    Refer to INSTALLATION [05/2023 - ]

  5. INSTALL VISOR BRACKET COVER

    HINT:

    Use the same procedure for the opposite side.

    1. Attach the claw to install the visor bracket cover.
      GTY953697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT PILLAR GARNISH LH

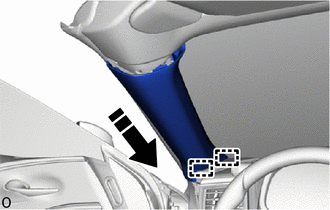

    1. Insert the guide as shown in the illustration.
      GTY953751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

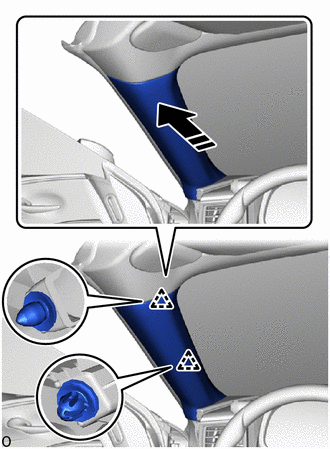

    2. Attach the clip to install the front pillar garnish LH.
      GTY953782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  7. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  8. INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER LH

    See step  36

  9. INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER RH

    See step  37

  10. INSTALL FRONT DOOR OPENING TRIM COVER LH

    See step  38

  11. INSTALL FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure described for the LH side.

  12. INSTALL FRONT DOOR SCUFF PLATE LH

    See step  40

  13. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.
