Installation [07/2020 - ]: Procedure

INSTALL METER HOOD SPACER

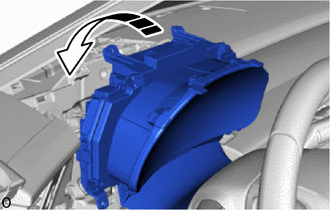

Attach the claw to install the meter hood spacer.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL COMBINATION METER ASSEMBLY

Temporarily install the combination meter assembly in the direction indicated by the arrow in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

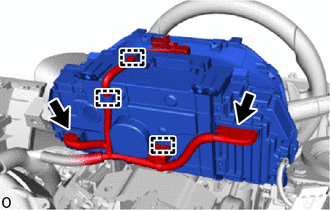

Connect the 2 connectors and attach the wire harness clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

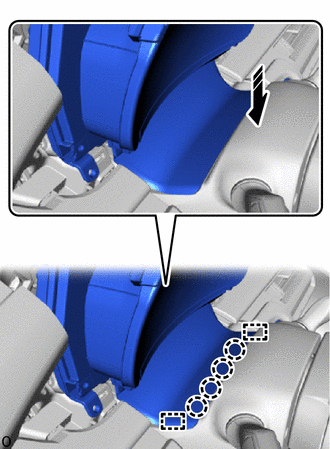

Attach the guide and claw in the direction indicated by the arrow in the illustration.

Install in this Direction

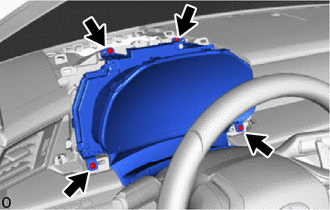

Install the combination meter assembly with the 4 screws.

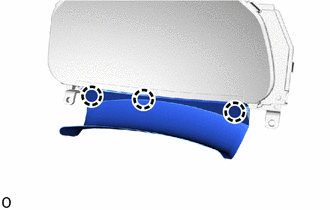

INSTALL METER HOOD SUB-ASSEMBLY
Refer to PROCEDURE - Step 38 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 38 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 43 [05/2023 - ]
INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
Refer to PROCEDURE - Step 39 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 39 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 44 [05/2023 - ]
CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to PROCEDURE - Step 23 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 23 [05/2023 - ]
