Removal [04/2013 - 09/2020]: Procedure

Refer to REMOVAL [04/2013 - 09/2020]

Refer to PROCEDURE - Step 7

Refer to PROCEDURE - Step 14 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 14 [10/2016 - 09/2020]

Refer to PROCEDURE - Step 15 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 16 [10/2016 - 09/2020]

HINT:

When removing the rear door front window frame moulding, heat the vehicle body and rear door front window frame moulding using a heat light.

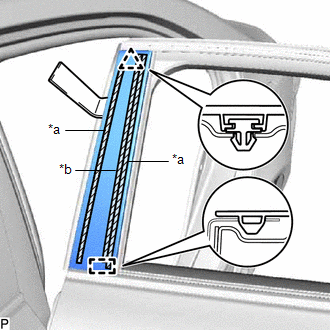

1. Using a heat light, heat the rear door front window frame moulding.
2. Using a moulding remover, disengage the clip and guide, and remove the rear door front window frame moulding.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Double-sided Tape
   *b	Caulking Sponge

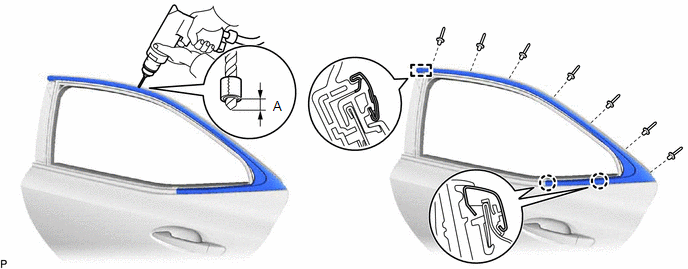

1. Insert a 4.0 mm (0.157 in.) drill bit into a drill.
2. Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Area	Dimension
   A	5.0 mm

   NOTE:

   Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

3. Lightly press the drill bit against the rivets to drill off the rivet flanges, and remove the 7 rivets.
   NOTE:

   • Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
   • Prying the rivets with the drill may damage the rivet installation holes or drill bit.
   • Be careful of the drilled rivets, as they may be hot.
4. Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.
5. Disengage the 2 claws and guide to remove the rear door window frame moulding sub-assembly.
