Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH

    Refer to PROCEDURE - Step 3 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020]

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020]

  3. REMOVE REAR DOOR NO. 3 ARMREST COVER LH

    Refer to PROCEDURE - Step 5 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2020]

  4. REMOVE REAR DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 6 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 6 [10/2016 - 09/2020]

  5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 7 [10/2016 - 09/2020]

  6. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH

    Refer to PROCEDURE - Step 9 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 09/2020]

  7. REMOVE REAR SPEAKER ASSEMBLY
    1. Disconnect the connector.

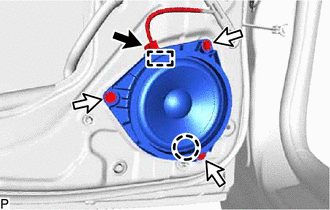

      GTY456327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws.
      NOTE:

      Do not touch the speaker cone.

    3. Disengage the claw and guide to remove the rear speaker assembly.
  8. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 15 Speakers)
    1. Disengage the 3 claws and remove the rear No. 2 speaker assembly from the rear door trim board sub-assembly.

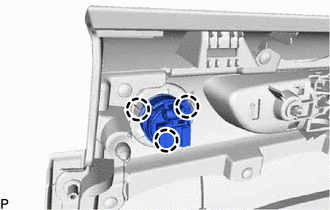

      GTY456325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the speaker cone.
