Removal [04/2013 - 09/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016] , or refer to PRECAUTION [10/2016 - 10/2017] , or refer to PRECAUTION [10/2017 - 09/2020]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016] , or refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020]

  3. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020]

  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020]

  5. REMOVE REAR DOOR NO. 3 ARMREST COVER

    Refer to PROCEDURE - Step 5 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2020]

  6. REMOVE REAR DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 6 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 6 [10/2016 - 09/2020]

  7. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 7 [10/2016 - 09/2020]

  8. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 9 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 09/2020]

  9. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 12 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 12 [10/2016 - 09/2020]

  10. DISCONNECT REAR DOOR WEATHERSTRIP

    Refer to PROCEDURE - Step 10

  11. REMOVE REAR DOOR GLASS RUN

    Refer to PROCEDURE - Step 16 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 17 [10/2016 - 09/2020]

  12. REMOVE REAR DOOR LOWER WINDOW FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 18 [10/2016 - 09/2020]

  13. REMOVE REAR DOOR QUARTER WINDOW GLASS

    Refer to PROCEDURE - Step 18 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 19 [10/2016 - 09/2020]

  14. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 20 [10/2016 - 09/2020]

  15. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

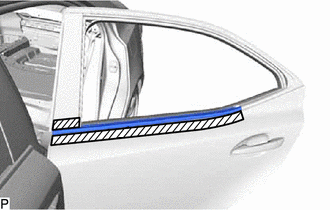

    1. Apply protective tape around the rear door belt moulding assembly.
      GTY463136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

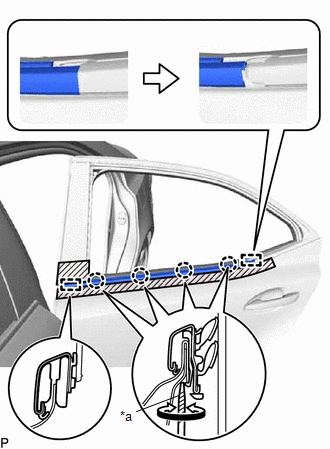

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws and 2 guides and remove the rear door belt moulding assembly.
      GTY465990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
