Removal [04/2013 - ]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016] , or refer to PRECAUTION [10/2016 - 10/2017] , or refer to PRECAUTION [10/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016] , or refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020] , or refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG
Refer to PROCEDURE - Step 3 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]
REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
Refer to PROCEDURE - Step 4 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 4 [09/2020 - ]
REMOVE REAR DOOR NO. 3 ARMREST COVER
Refer to PROCEDURE - Step 5 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 5 [09/2020 - ]
REMOVE REAR DOOR NO. 1 STIFFENER CUSHION
Refer to PROCEDURE - Step 6 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 6 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 6 [09/2020 - ]
REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 7 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 7 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 7 [09/2020 - ]
REMOVE REAR DOOR INNER GLASS WEATHERSTRIP
Refer to PROCEDURE - Step 9 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 9 [09/2020 - ]
REMOVE REAR DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 12 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 12 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 12 [09/2020 - ]

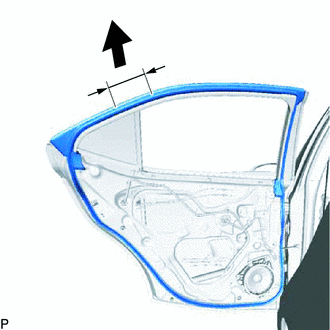

DISCONNECT REAR DOOR WEATHERSTRIP

Disconnect the rear door weatherstrip as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DOOR GLASS RUN
Refer to PROCEDURE - Step 16 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 17 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 17 [09/2020 - ]
REMOVE REAR DOOR LOWER WINDOW FRAME SUB-ASSEMBLY
Refer to PROCEDURE - Step 17 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 18 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 18 [09/2020 - ]
REMOVE REAR DOOR QUARTER WINDOW GLASS
Refer to PROCEDURE - Step 18 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 19 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 19 [09/2020 - ]
REMOVE REAR DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 19 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 20 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 20 [09/2020 - ]
REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY
Refer to PROCEDURE - Step 23 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 24 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 24 [09/2020 - ]

REMOVE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY

Using a T25 "TORX" socket wrench, remove the 3 screws and rear power window regulator motor assembly.
