Removal [04/2013 - 09/2020]: Procedure

REMOVE LUGGAGE COMPARTMENT DOOR COVER
Refer to PROCEDURE - Step 2 [04/2013 - 10/2017] , or refer to PROCEDURE - Step 2 [10/2017 - 09/2020]
REMOVE REAR LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 2 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 2 [10/2016 - 09/2020]
REMOVE REAR LIGHT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.

REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE UPPER GARNISH LH

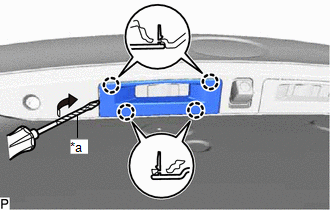

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the luggage compartment door outside upper garnish LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE UPPER GARNISH RH
HINT:

Use the same procedure as for the LH side.

REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

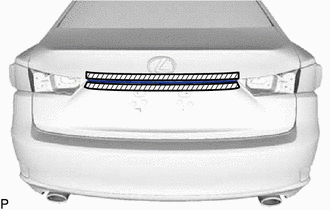

Apply protective tape around the luggage compartment door outside garnish sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

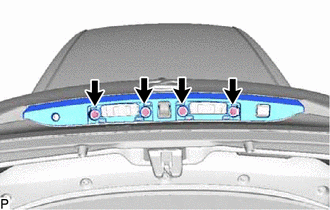

Remove the 4 screws.

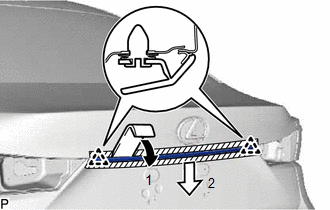

Using a moulding remover, disengage the 2 clips and remove the luggage compartment door outside garnish sub-assembly as shown in the illustration.

Remove the 2 clips from the luggage compartment door outside garnish sub-assembly.

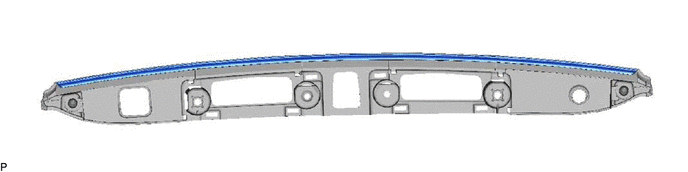

REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH PROTECTOR

Remove the luggage compartment door outside garnish protector from the luggage compartment door outside garnish.
