Removal [10/2016 - 09/2020]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2 [04/2013 - 10/2017] , or refer to PROCEDURE - Step 2 [10/2017 - 09/2020]

  2. REMOVE REAR LIGHT ASSEMBLY

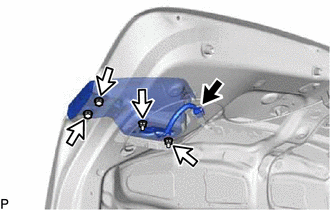

    1. Disconnect the connector.
      GTY678241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 nuts and rear light assembly.
