Removal [04/2013 - 10/2016]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2

  2. REMOVE REAR LIGHT ASSEMBLY

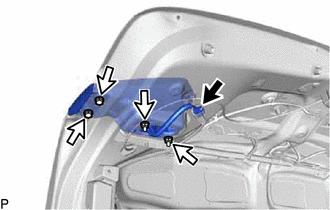

    1. Disconnect the connector.
      GTY461331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 nuts and rear light assembly.
