Removal [06/2018 - 09/2022]: Procedure

  1. REMOVE OUTER MIRROR

    Refer to PROCEDURE - Step 1 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 1 [08/2021 - ]

  2. REMOVE OUTER MIRROR COVER ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SIDE TELEVISION CAMERA ASSEMBLY

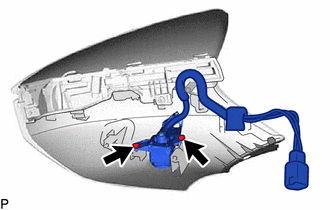

    1. Remove the 2 screws and side television camera assembly.
      GTY789333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
