Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE OUTER MIRROR
    1. Apply protective tape to the areas shown in the illustration.
      GTY832144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
      Move in this Direction
    2. Push the upper part of the mirror surface and tilt it.
    3. Using a moulding remover, disengage the 2 claws on the lower part of the outer mirror as shown in the illustration.
      NOTE:

      Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.

    4. Push the lower part of the mirror surface and tilt it.
    5. w/o Blind Spot Monitor System:
      1. Using a moulding remover, disengage the 2 claws on the upper part of the outer mirror as shown in the illustration.
        GTY795317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Move in this Direction
        NOTE:

        Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.

      2. Disengage the clamp.

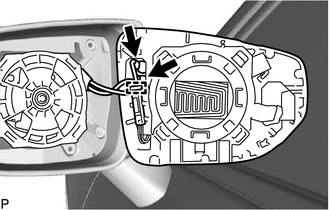

        GTY821311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disconnect the 2 connectors.
      4. Disengage the clamp.

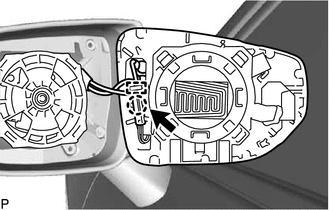

        GTY821314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Disengage the claw.
      6. Disconnect the connector to remove the outer mirror.
    6. w/ Blind Spot Monitor System:
      1. Using a moulding remover, disengage the 2 claws on the upper part of the outer mirror as shown in the illustration.
        GTY831689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Move in this Direction
        NOTE:

        Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.

      2. Disengage the clamp.
        GTY832148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disconnect the 2 connectors.

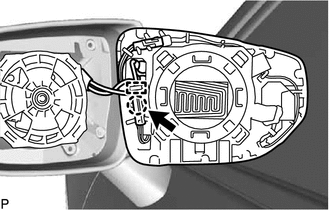

      4. GTY797436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Disengage the clamp.

      5. Disengage the claw.
      6. Disconnect the connector.
      7. Disengage the clamp.
        GTY797435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Disengage the claw.
      9. Disconnect the connector to remove the outer mirror.
