Removal [08/2021 - ]: Procedure

  1. REMOVE OUTER MIRROR
    1. Apply protective tape to the area shown in the illustration.
      GTY1085857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
      Move in this Direction
    2. Push the upper part of the mirror surface and tilt it.
    3. Using a moulding remover, disengage the 2 claws on the lower part of the outer mirror as shown in the illustration.
      NOTE:

      Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.

    4. Apply protective tape to the area shown in the illustration.

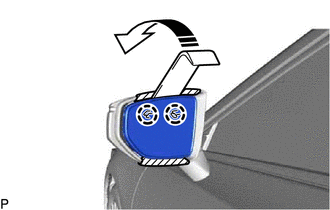

      GTY1087706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
      Move in this Direction
    5. Push the lower part of the mirror surface and tilt it.
    6. Using a moulding remover, disengage the 2 claws on the upper part of the outer mirror as shown in the illustration.
      NOTE:

      Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.

    7. Disengage the clamp.
      GTY1085927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Disconnect the 2 mirror heater connectors.
    9. for Driver Side:
      1. Disengage the claw and clamp.
        GTY1085928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Release the tabs of the EC mirror connector and disconnect the EC mirror connector.
        NOTE:
        • Do not bend the tabs excessively to prevent them from being damaged.
        • If the tabs are damaged, replace the outer mirror with a new one.
      3. Disengage the claw and clamp.

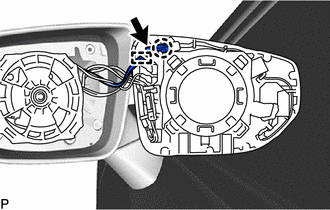

        GTY1086110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Release the tabs of the blind spot monitor indicator connector and disconnect the blind spot monitor indicator connector.
        NOTE:
        • Do not bend the tabs excessively to prevent them from being damaged.
        • If the tabs are damaged, replace the outer mirror actuator assembly with a new one.
    10. for Front Passenger Side:
      1. Disengage the claw and clamp.

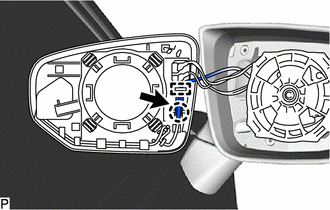

        GTY1085931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Release the tabs of the blind spot monitor indicator connector and disconnect the blind spot monitor indicator connector.
        NOTE:
        • Do not bend the tabs excessively to prevent them from being damaged.
        • If the tabs are damaged, replace the outer mirror actuator assembly with a new one.
    11. Remove the outer mirror.
