Installation [06/2018 - ]: Procedure

  1. INSTALL NAVIGATION ANTENNA BRACKET
  2. INSTALL NAVIGATION ANTENNA ASSEMBLY

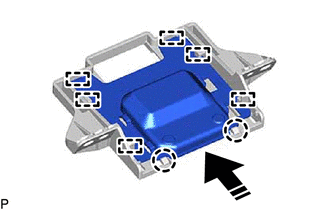

    1. Engage the 6 guides and 2 claws to install the navigation antenna assembly as shown in the illustration.
      GTY833053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET
    1. Install the navigation antenna assembly with bracket with the 2 screws.
    2. Engage the 2 claws.
    3. Connect the connector.
  4. INSTALL NO. 3 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 11 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 11 [08/2021 - ]

  5. INSTALL DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 13 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 13 [08/2021 - ]

  6. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 14 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 14 [08/2021 - ]

  7. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [06/2018 - 08/2021] , or refer to INSTALLATION [08/2021 - ]
