Reassembly [08/2021 - ]: Procedure

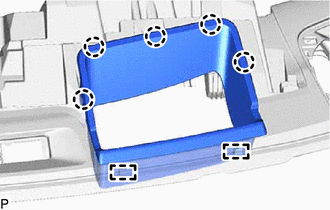

  1. INSTALL INSTRUMENT CLUSTER FINISH PANEL END (w/ Headup Display)
    1. Engage the 2 guides and 5 claws to install the instrument cluster finish panel end.
      GTY1085411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 5 INSTRUMENT PANEL SAFETY PAD RETAINER

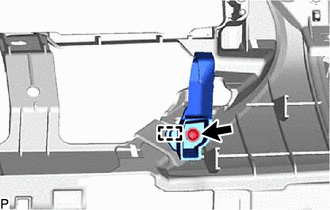

    1. Engage the guide.
      GTY1085410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 5 instrument panel safety pad retainer with the screw <C>.
  3. INSTALL NO. 2 DEFROSTER NOZZLE GARNISH

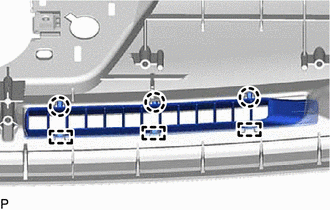

    1. Engage the 3 guides and 3 claws to install the No. 2 defroster nozzle garnish.
      GTY1085416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH

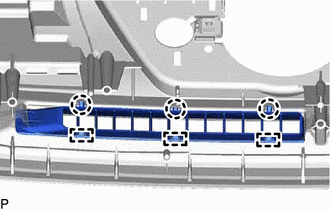

    1. Engage the 3 guides and 3 claws to install the No. 1 defroster nozzle garnish.
      GTY1086007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

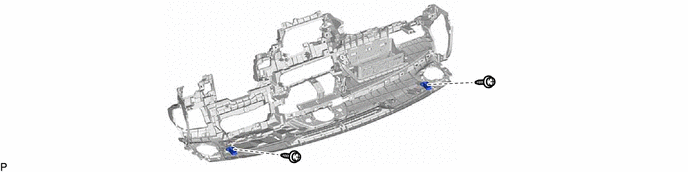

  5. INSTALL NO. 1 INSTRUMENT PANEL PIN
    1. Install the 2 No. 1 instrument panel pins with the 2 screws <C>.
      GTY1085415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

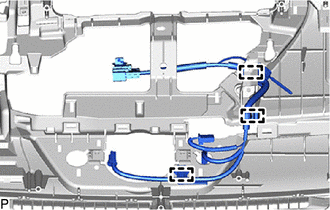

  6. INSTALL NO. 3 INSTRUMENT PANEL WIRE
    1. Engage the 3 clamps to install the No. 3 instrument panel wire.
      GTY1085414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 3

  8. INSTALL ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  9. INSTALL NO. 2 HEATER TO REGISTER DUCT

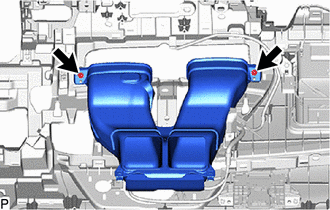

    1. Install the No. 2 heater to register duct with the 2 screws <C>.
      GTY1086106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  11. INSTALL NO. 3 HEATER TO REGISTER DUCT

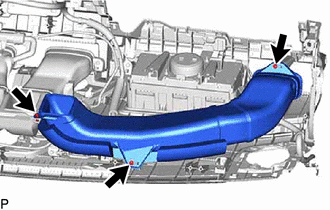

    1. Install the No. 3 heater to register duct with the 3 screws <C>.
      GTY1086006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

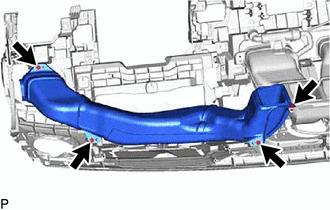

  12. INSTALL NO. 1 HEATER TO REGISTER DUCT
    1. Install the No. 1 heater to register duct with the 4 screws <C>.
      GTY1085413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL DEFROSTER NOZZLE ASSEMBLY

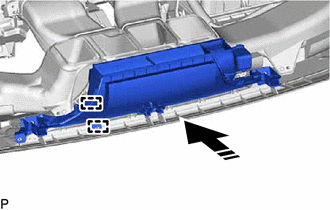

    1. Engage the 2 guides as shown in the illustration.
      GTY1085794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

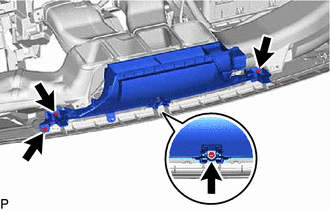

    2. Install the defroster nozzle assembly with the 4 screws <C>.
      GTY1085406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT

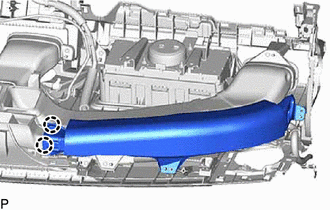

    1. Engage the 2 claws.
      GTY1085407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

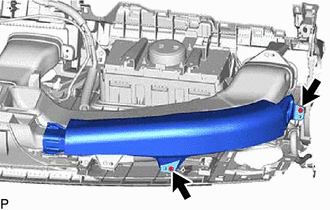

    2. Install the No. 2 side defroster nozzle duct with the 2 screws <C>.
      GTY1085409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
