Installation [10/2018 - 07/2022]: Procedure

INSTALL REAR STABILIZER BUSH
1. Install the 2 rear stabilizer bushes to the rear stabilizer bar.
  NOTE:
  Be sure to install the rear stabilizer bushes so that each cutout faces the front of the vehicle.

INSTALL REAR NO. 1 STABILIZER BAR BRACKET

for 2WD:

Install the 2 rear No. 1 stabilizer bar brackets to the 2 rear stabilizer bushes.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Arrow Mark
	Front of the Vehicle

NOTE:

Be sure to install the rear No. 1 stabilizer bar brackets so that each arrow mark faces the front of the vehicle.

for AWD:

Install the 2 rear No. 1 stabilizer bar brackets to the 2 rear stabilizer bushes.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Arrow Mark
	Top of the Vehicle

NOTE:

Be sure to install the rear No. 1 stabilizer bar brackets so that each arrow mark faces the top of the vehicle.

INSTALL REAR STABILIZER BAR

for 2WD:

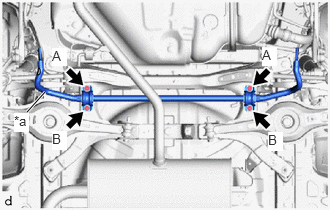

Install the rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushes to the rear suspension member sub-assembly with the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Identification Mark

Torque: 78 N.m 795 kgf/cm 58 ft.lbf

NOTE:

Ensure that the identification mark faces the right side of the vehicle.
Temporarily tighten bolt (A) and then fully tighten the 2 bolts in the order of (B) and (A).

for AWD:

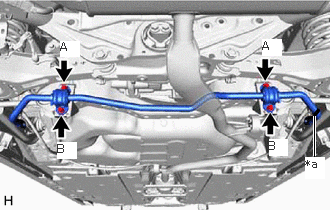

Install the rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushes to the rear suspension member sub-assembly with the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Identification Mark

Torque: 78 N.m 795 kgf/cm 58 ft.lbf

NOTE:

Ensure that the identification mark faces the right side of the vehicle.
Temporarily tighten bolt (A) and then fully tighten the 2 bolts in the order of (B) and (A).

STABILIZE SUSPENSION
See step 4

INSTALL REAR STABILIZER LINK ASSEMBLY LH

Install the rear stabilizer link assembly LH with the nut (A).

Torque: 75 N.m 765 kgf/cm 55 ft.lbf

HINT:

If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

Install the rear stabilizer link assembly LH with the bolt and nut (B).
Torque: 75 N.m 765 kgf/cm 55 ft.lbf

NOTE:
When installing the nut, keep the bolt from rotating.
install the cap.

INSTALL REAR STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.
INSTALL REAR FLOOR SIDE MEMBER COVER LH
- for 2WD:
  Refer to PROCEDURE - Step 20
- for AWD:
  Refer to PROCEDURE - Step 21
INSTALL NO. 1 FLOOR UNDER COVER ASSEMBLY
- for 2WD:
  Refer to PROCEDURE - Step 21
- for AWD:
  Refer to PROCEDURE - Step 22
INSTALL REAR WHEEL
Refer to INSTALLATION [10/2018 - ]
