Removal [10/2018 - ]: Procedure

  1. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for 2WD)
    NOTE:

    If the rear height control sensor sub-assembly LH has been struck or dropped, replace it with a new one.

    1. Disconnect the connector.

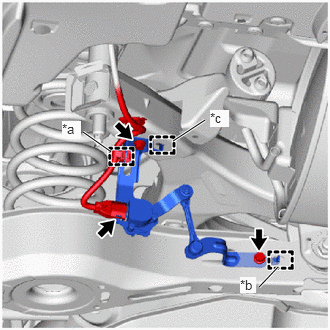

      GTY832338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Hook
      *c Guide
    2. Disengage the clamp.
    3. Remove the 2 bolts.
    4. Disengage the hook and guide to remove the rear height control sensor sub-assembly LH.
  2. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for AWD)
    NOTE:

    If the rear height control sensor sub-assembly LH has been struck or dropped, replace it with a new one.

    1. Disconnect the connector.

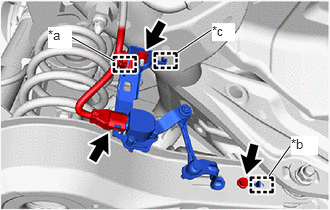

      GTY803807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Hook
      *c Guide
    2. Disengage the clamp.
    3. Remove the bolt and nut.
    4. Disengage the hook and guide to remove the rear height control sensor sub-assembly LH.
