Installation [10/2018 - 07/2022]: Procedure

INSTALL REAR UPPER COIL SPRING INSULATOR
1. Install the rear upper coil spring insulator to the vehicle.
INSTALL REAR LOWER COIL SPRING INSULATOR
1. Install the rear lower coil spring insulator to the rear No. 2 suspension arm assembly.

INSTALL REAR COIL SPRING

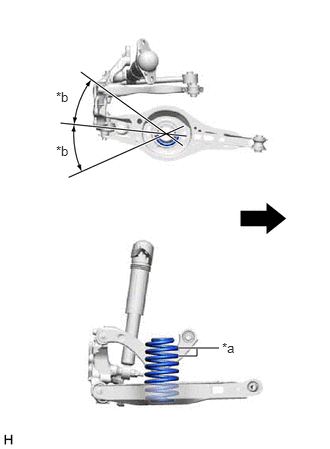

Set the rear coil spring to the rear No. 2 suspension arm assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Identification Mark
*b	30° or less
	Inner Side of the Vehicle

NOTE:

Set the rear coil spring so that its lower end is within the range shown in the illustration.
Set the rear coil spring so that the identification mark is positioned as shown in the illustration.

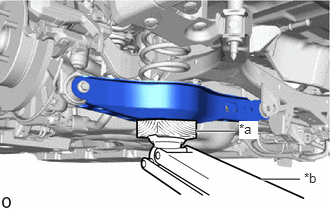

Using a jack and wooden block, slowly jack up the rear No. 2 suspension arm assembly and then install the rear No. 2 suspension arm assembly to the rear axle carrier sub-assembly with the bolt and nut.

WARNING:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Do not raise the jack up too high.
The vehicle could fall, resulting in a serious accident.

NOTE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
Make sure to perform this operation with the vehicle kept as low as possible.
Insert the bolt with the threaded end facing the front of the vehicle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Wooden Block
*b	Jack

STABILIZE SUSPENSION
See step 4

FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY

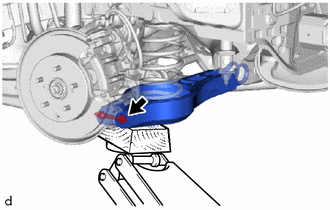

Install the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) with the bolt.

Torque: 73 N.m 744 kgf/cm 54 ft.lbf

NOTE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (w/ Height Control Sensor)
- for 2WD:
  Refer to PROCEDURE - Step 1
- for AWD:
  Refer to PROCEDURE - Step 2
INSTALL REAR FLOOR SIDE MEMBER COVER LH (for LH Side)
- for 2WD:
  Refer to PROCEDURE - Step 20
- for AWD:
  Refer to PROCEDURE - Step 21
INSTALL NO. 1 FLOOR UNDER COVER ASSEMBLY (for RH Side)
- for 2WD:
  Refer to PROCEDURE - Step 21
- for AWD:
  Refer to PROCEDURE - Step 22
INSTALL REAR WHEEL
Refer to INSTALLATION [10/2018 - ]
FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY
1. Install the rear No. 2 suspension arm assembly (rear suspension member sub-assembly side) with the nut.
  - for 2WD:
    See step 13
  - for AWD:
    See step 16
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Refer to ADJUSTMENT [10/2018 - 07/2022]
PERFORM CALIBRATION (w/ Parking Support Brake System)
Refer to CALIBRATION [10/2018 - ]
PERFORM CALIBRATION (w/ Parking Assist Monitor System)
Refer to CALIBRATION [10/2018 - 07/2022]
INITIALIZATION HEADLIGHT ECU SUB-ASSEMBLY
Refer to INITIALIZATION [10/2018 - 10/2020] , or refer to INITIALIZATION [10/2020 - ]
