Removal [10/2018 - 07/2022]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [10/2018 - 07/2022]
- REMOVE SERVICE PLUG GRIP
Refer to REMOVAL [10/2018 - 07/2022]
- DISCONNECT ENGINE WIRE WARNING:
Wear insulated gloves.
NOTE:Do not allow any foreign matter or water to enter the inverter with converter assembly.

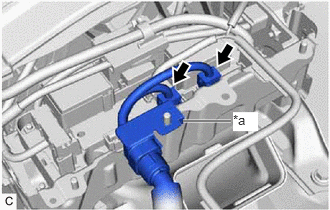

- Move each lock lever as shown in the illustration and disconnect the 2 inverter with converter assembly connectors.NOTE:
- Do not touch the waterproof seal or terminals of the connector.
- Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
- Cover the hole where the cable was connected with tape (non-residue type) or equivalent to prevent entry of foreign matter.
- Insulate the disconnected terminals with insulating tape.
- Move each lock lever as shown in the illustration and disconnect the 2 inverter with converter assembly connectors.
- REMOVE CONNECTOR COVER ASSEMBLY
Refer to PROCEDURE - Step 12
- CHECK TERMINAL VOLTAGE
Refer to PROCEDURE - Step 13
- TEMPORARILY INSTALL CONNECTOR COVER ASSEMBLY
Refer to PROCEDURE - Step 14
- DISCONNECT FLOOR UNDER WIRE
Refer to PROCEDURE - Step 15
- REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 9
- REMOVE REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 28 [10/2018 - 10/2020] Refer to PROCEDURE - Step 28 [10/2020 - 07/2022]
- REMOVE REAR UNDER SIDE COVER LH
Refer to PROCEDURE - Step 30 [10/2018 - 10/2020] Refer to PROCEDURE - Step 30
- REMOVE REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 29 [10/2018 - 10/2020] Refer to PROCEDURE - Step 29 [10/2020 - 07/2022]
- REMOVE REAR UNDER SIDE COVER RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 31 [10/2018 - 10/2020] Refer to PROCEDURE - Step 31 [10/2020 - 07/2022]
- REMOVE REAR UNDER COVER
See step 14
- REMOVE DECK BOARD ASSEMBLY (for AWD)
Refer to PROCEDURE - Step 5 [10/2018 - 10/2020] Refer to PROCEDURE - Step 5 [10/2020 - 07/2022]
- REMOVE REAR DECK FLOOR BOX (for AWD)
Refer to PROCEDURE - Step 11 [10/2018 - 10/2020] Refer to PROCEDURE - Step 12 [10/2020 - 07/2022]
- REMOVE LUGGAGE ROOM REAR COVER (for AWD)
Refer to PROCEDURE - Step 5
- REMOVE INVERTER TERMINAL COVER (for AWD)
Refer to PROCEDURE - Step 6
- CHECK TERMINAL VOLTAGE (for AWD)
Refer to PROCEDURE - Step 7
- TEMPORARILY TIGHTEN INVERTER TERMINAL COVER (for AWD)
Refer to PROCEDURE - Step 11
- REMOVE REAR SEATBACK ASSEMBLY RH (for AWD)
Refer to PROCEDURE - Step 7
- REMOVE REAR SEAT SIDE GARNISH RH (for AWD)
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 36 [10/2018 - 10/2020] Refer to PROCEDURE - Step 36 [10/2020 - 07/2022]
- REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY
See step 15
- REMOVE BATTERY COOLING BLOWER ASSEMBLY
See step 9
- REMOVE NO. 1 HV BATTERY COVER PANEL RH
See step 17
- DISCONNECT FLOOR UNDER WIRE (for 2WD) WARNING:
Wear insulated gloves.
NOTE:Insulate the disconnected connectors with insulating tape.
- DISCONNECT HV BATTERY PACK WIRE (for AWD) WARNING:
Wear insulated gloves.
NOTE:Insulate the disconnected connectors with insulating tape.
- REMOVE NO. 1 FLOOR UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE FRONT FLOOR COVER RH
HINT:
Perform the same procedure as for the front floor cover LH.
Refer to PROCEDURE - Step 3
- REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
Refer to REMOVAL [10/2018 - 07/2022]
- REMOVE FLOOR UNDER WIRE WARNING:
Wear insulated gloves.
NOTE:Insulate the disconnected connectors with insulating tape.
- Remove the 2 nuts.
- Remove the 3 clamps.NOTE:
If the clamps are removed forcibly, the stud bolts may be damaged.
- Disengage the grommet and pull out the HV floor under wire from the floor panel hole.
- Remove the clamp (A).
*A for LHD *B for RHD - Disengage the clamp (B) to remove the HV floor under wire.
- Remove the 2 nuts.
- REMOVE FLOOR UNDER WIRE (for 2WD) WARNING:
Wear insulated gloves.
NOTE:Insulate the disconnected connectors with insulating tape.
- REMOVE FLOOR UNDER WIRE (for AWD) WARNING:
Wear insulated gloves.
NOTE:Insulate the disconnected connectors with insulating tape.
- Remove the 2 clamps.
- Remove the 5 clamps.
- Remove the clamp.
- Remove the 2 nuts.
- Remove the 3 clamps.NOTE:
If the clamps are removed forcibly, the stud bolts may be damaged.
- Disengage the grommet and pull out the HV floor under wire from the floor panel hole.
- Remove the nut.
- Disconnect the connector.
- Disengage the 2 clamps to remove the HV floor under wire.
- Remove the 2 clamps.
- REMOVE HV BATTERY PACK WIRE (for AWD) WARNING:
Wear insulated gloves.
