Removal [07/2022 - ]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to REMOVAL [10/2018 - ]

  2. REMOVE LOWER INSTRUMENT CENTER COVER

    Refer to PROCEDURE - Step 14

  3. REMOVE INSTRUMENT PANEL FINISH LOWER CENTER PANEL

    Refer to PROCEDURE - Step 15

  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  5. REMOVE NO. 2 INSTRUMENT SIDE PANEL

    HINT:

    Use the same procedure as for the No. 1 instrument side panel.

    Refer to PROCEDURE - Step 10

  6. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL ASSEMBLY

    Refer to PROCEDURE - Step 18

  8. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 19

  9. REMOVE MULTI-DISPLAY

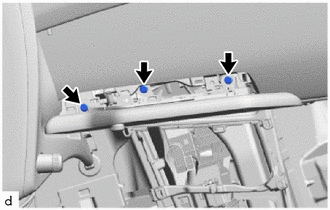

    1. Remove the 3 bolts.
      GTY1135772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

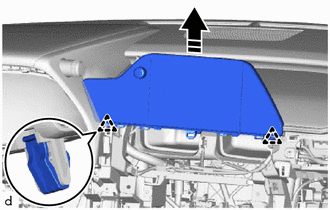

    2. Disengage the clips to separate the multi-display as shown in the illustration.
      GTY1136074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

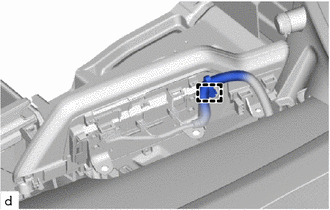

    3. Disengage the clamp.
      GTY1135767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector to remove the multi-display.
